Absolute Encoder

Reliable and accurate position feedback without reference point, and the shaft is still rotating after power failure.

  • Absolute encoder to use precise optical technology and strong magnetic sensor technology to sensor location information
  • extremely rich products series; Single-turn and multi-turn technologies provide a variety of signal interfaces and shaft types
  • Positioning information when the power is maintained
  • No battery more than ring technology: optical mechanical gears without batteries
  • High shock resistance, anti jitter performance
Filter by attribute
Dimensions
Sensing method
Functional principle
Installation method
Shaft type
Interface
Steps per turn
Number of turn
Picture Product Series Housing size Shaft diameter Number of turn Steps per turn Output Remarks Download file

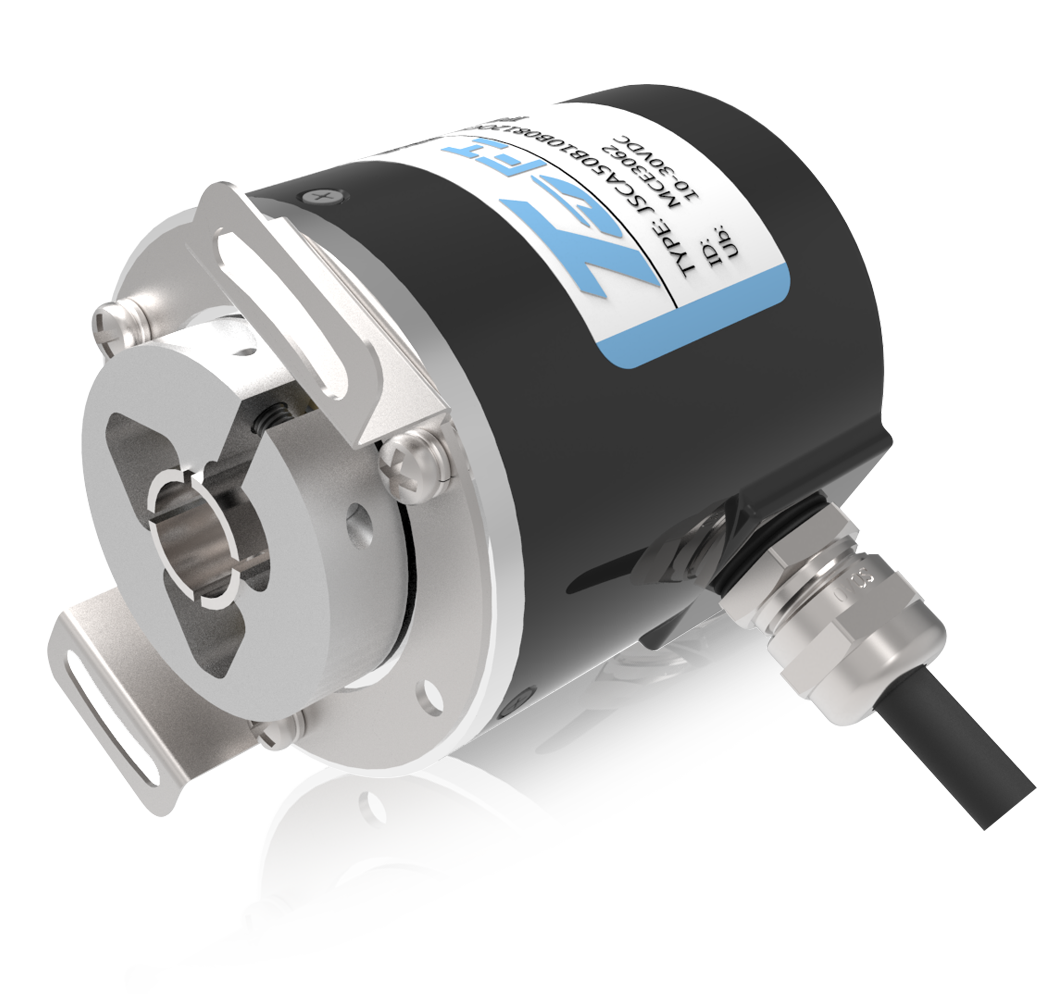

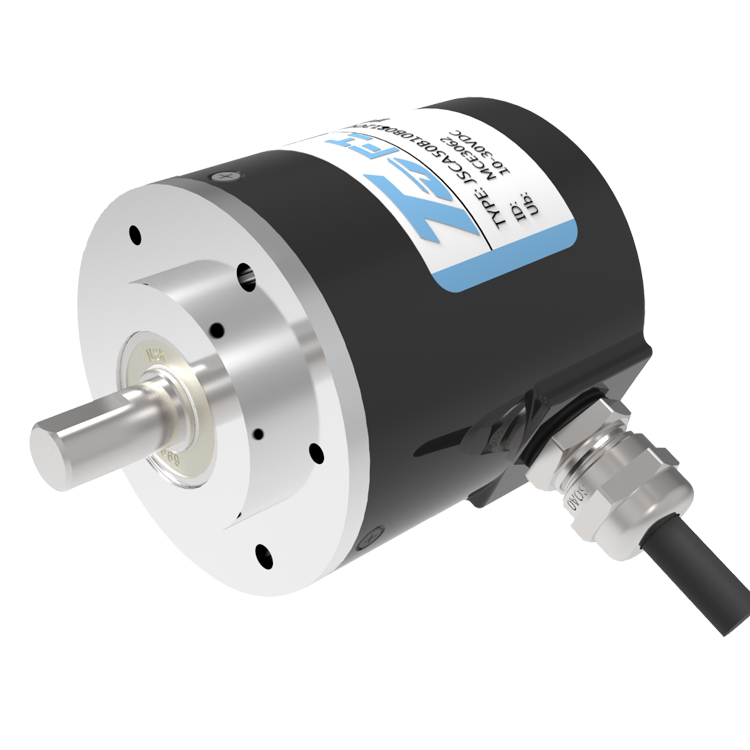

JSCA50-CANopen Series Φ50mm Solid keyway shaft Φ25mm
Solid shaft Φ6、Φ8mm
Half hollow shaft Φ8、Φ10mm
≤256/8Bit ≤4096/12Bit CANopen
JSCA50-CAN2.0B Series Φ50mm Solid keyway shaft Φ25mm
Solid shaft Φ6、Φ8mm
Half hollow shaft Φ8、Φ10mm
≤256/8Bit ≤4096/12Bit CAN2.0B
JSCA50-Modbus-RTU Series Φ50mm Solid keyway shaft Φ25mm
Solid shaft Φ6、Φ8mm
Half hollow shaft Φ8、Φ10mm
≤256/8Bit ≤4096/12Bit Modbus-RTU
JSCA50 RS485 Series Φ50mm Solid keyway shaft Φ25mm
Solid shaft Φ6、Φ8mm
Half hollow shaft Φ8、Φ10mm
≤256/8Bit ≤4096/12Bit RS485
JSCA50-SSI Series Φ50mm Solid keyway shaft Φ25mm
Solid shaft Φ6、Φ8mm
Half hollow shaft Φ8、Φ10mm
≤256/8Bit ≤4096/12Bit SSI

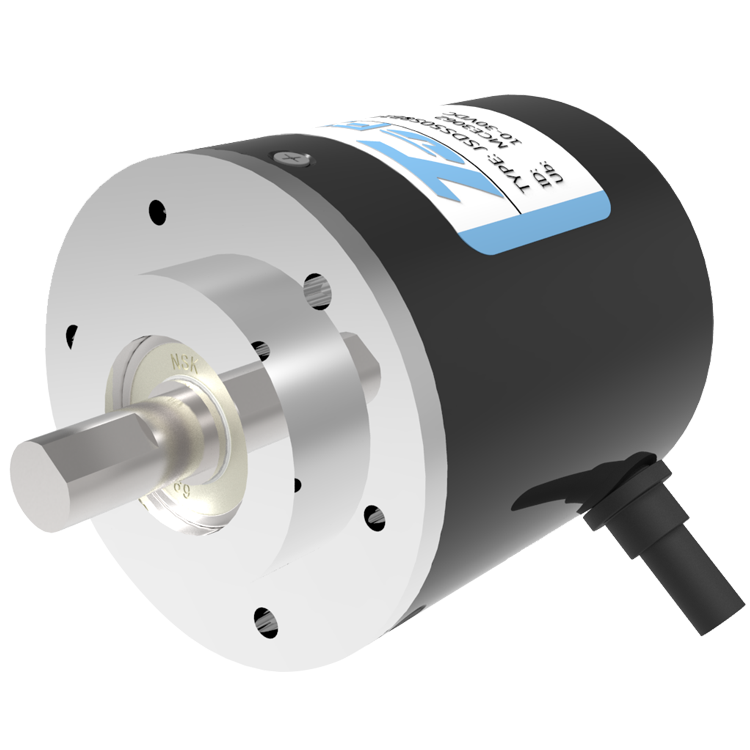

JSDS50S Series Φ50mm Solid shaft Φ6、Φ8mm - 65536/16bit SSI、RS422、RS485、RS232

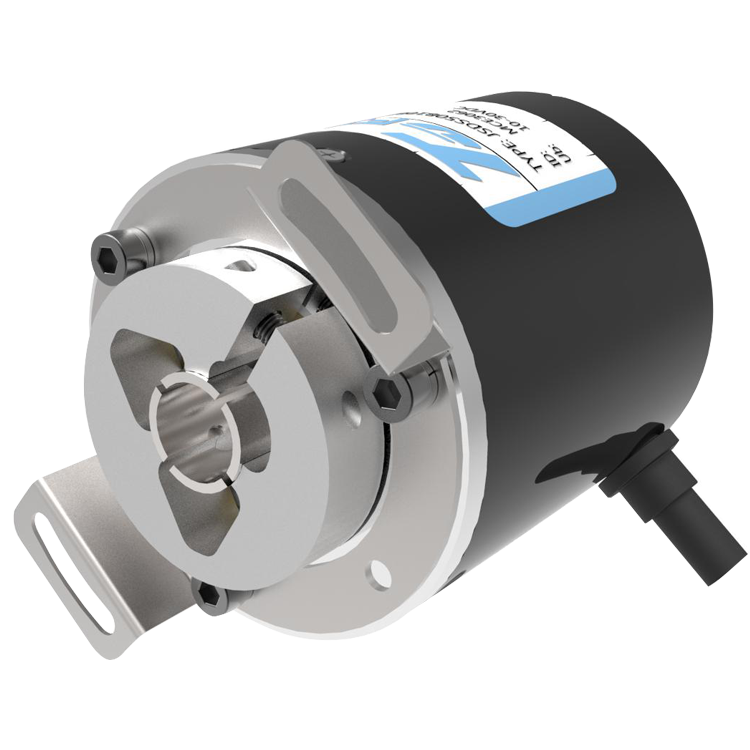

JSDS50B Series Φ50mm Blind hollow shaft Φ6、Φ8、Φ10mm - 65536/16bit SSI、RS422、RS485、RS232
