Absolute Encoder

JSCA50 RS485 Series

  • JSCA50 series
  • Sensing method Magnetic
  • Functional principle Multiturn
  • Mltiturn technology Mechanical gears without batteries
  • Housing size Φ50mm
  • Solid keyway shaft Φ25mm,Solid shaft Φ6、Φ8mm,Half hollow shaft Φ8、Φ10mm
  • Blind hollow shaft Φ8、Φ10mm
  • Max. resolution 20Bit
  • Steps per turn 4096/12Bit
  • Number of turn 1024/10Bit
  • Interface RS485
  • Supply voltage DC5V、DC10-30V
  • Protection IP54、IP65

Technical parameter

Technical – Machine characteristics

Shaft diameter Blind hollow shaft Φ8、Φ10mm

MaterialAluminum alloy

Shell material Tensile iron shell +Black painted

Shaft loading Max. 30 N Axial

Radial loadMax. 60 N Axial

Rotatinal speed Max. 3000 min

Shock resistance 50g,13ms

Shock resistance 10g,10...2000Hz

Protection grade IP54/IP65

Working temperature-40℃...+80℃

Storage temperature -40℃...+80℃

Weight ≈120g

Wiring method Radial direction

Technical – Electrical characteristics

Interface RS485

Supply voltageDC 5V±10% / DC 10-30V

Current consumption≤50mA

Output signalRS485 active transmission mode, baud rate 19200

Refresh cycle8ms

CodeBinary

Steps per turn4096/12Bit

Number of turn1024/10Bit

Accuracy<±0.3°

Repeated accuracy±2Bit

Count directionSettable

Position settingSettable

Ordering information

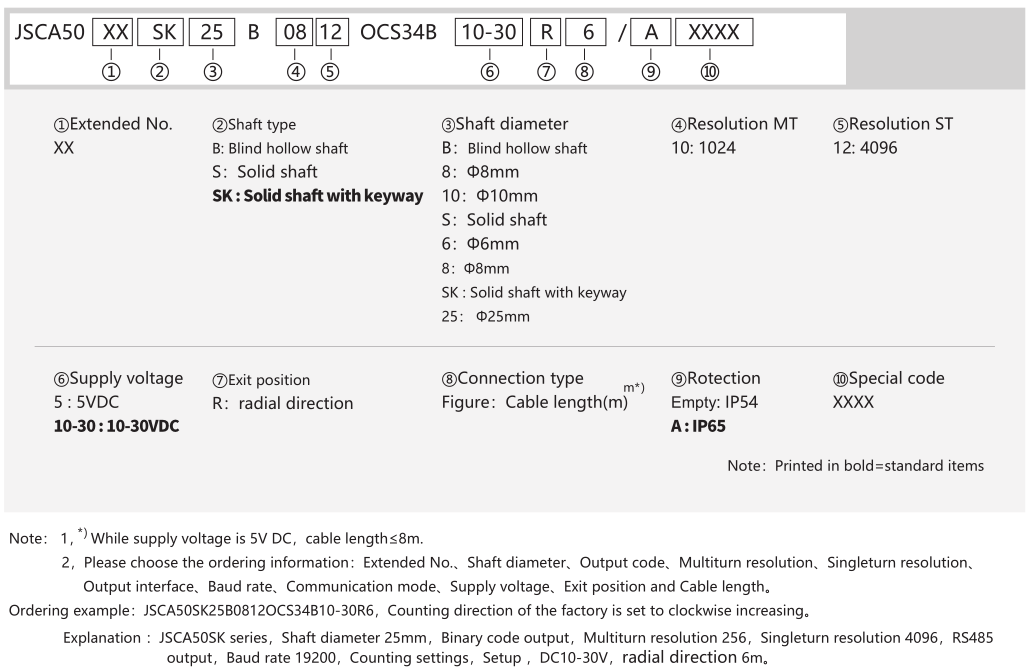

Ordering example: JSCA50SK25B0812OCS34B10-30R6

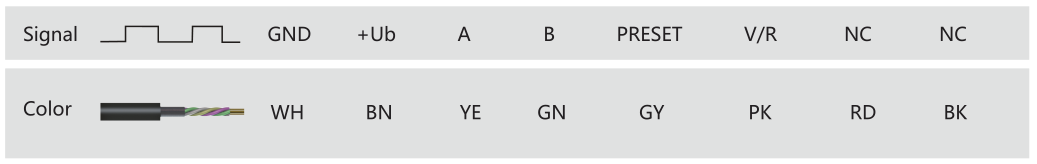

Terminal assignment

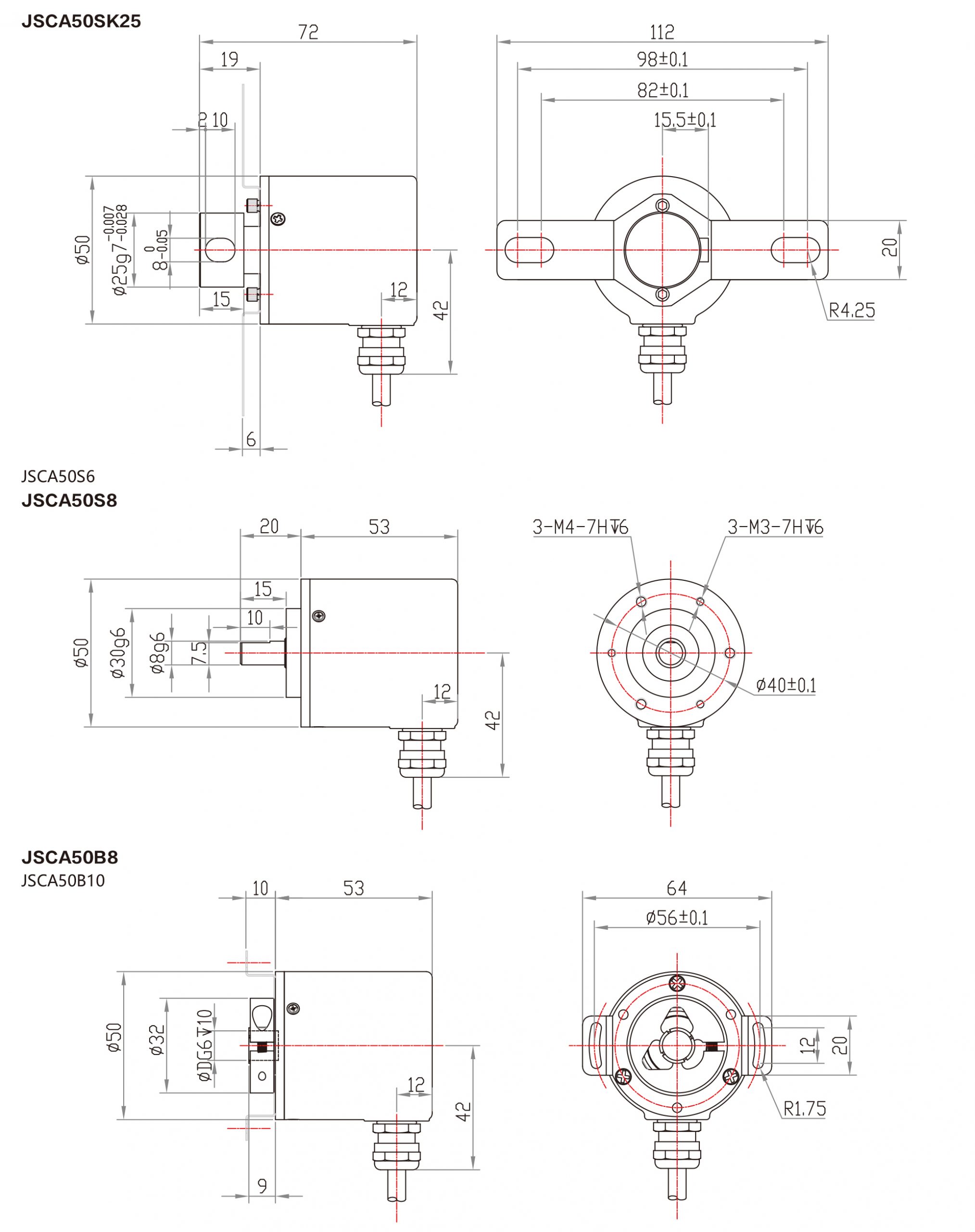

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
JSCA50-RS485 Series5.06 M

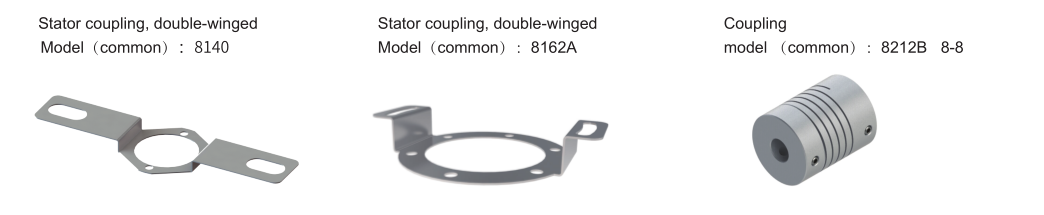

Accessories
