Incremental Encoder

Accurate position and speed feedback can be achieved even in harsh environments.Incremental encoders generate a series of pulses in response to linear or rotational motion.These pulses can be used to measure speed or feed back to a PLC or counter to track relative position.

  • Compact boundary dimension
  • Strong modular design
  • Outer diameter from 38mm to hollow shaft diameter 65mm
  • Precise optical sensing technology or strong magnetic inductivetechnology
  • Support all common installation programand HTL, TTL output signal

Product Series

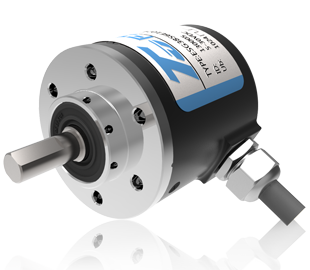

Φ38mm-Incremental Encoder
Φ38mm-Incremental Encoder
  • Accurate light sensing technology
  • 5000 pprResolution up to 5000ppr
  • Solid shaft diameter
  • 5–8 mmblind hole diameter
Open in the product filters
Φ50mm-Incremental Encoder
Φ50mm-Incremental Encoder
  • Accurate light sensing technology
  • 2500 ppr Resolution up to 2500 ppr
  • 6mm、8 mm、25mm solid shaft diameter
  • IP54/IP65 protection grade
Open in the product filters
Φ58mm-Solid shaft Incremental Encoder
Φ58mm-Solid shaft Incremental Encoder
  • Solid shaft incremental encoder
  • 5000 pprResolution up to 5000ppr
  • Solid shaft diameter 6-15mm
  • Clamp/sync and square flange / European flange B10
Open in the product filters

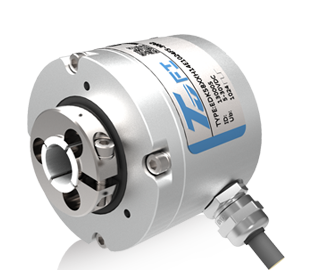

Φ58mm-Hollow shaft Incremental Encoder
Φ58mm-Hollow shaft Incremental Encoder
  • Accurate light sensing technology
  • 5000 ppr Resolution up to 5000ppr
  • Hollow shaft diameter 10-14mm
  • Protection grade IP54/IP65/IP66
Open in the product filters
Φ66~68mm-Incremental Encoder
Φ66~68mm-Incremental Encoder
  • Accurate light sensing technology
  • 5000 ppr Resolution up to 5000ppr
  • Solid shaft diameter  10mm、M10*1.5
  • Hollow shaft 12-25mm
  • Protection IP54/IP66
Open in the product filters

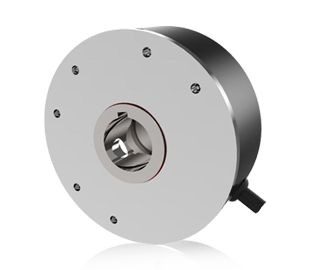

Φ76mm-Incremental Encoder
Φ76mm-Incremental Encoder
  • Accurate light sensing technology
  • 5000 pprResolution up to 5000ppr
  • Hollow shaft  20-25mm
  • Flexible bracketinstallation
Open in the product filters

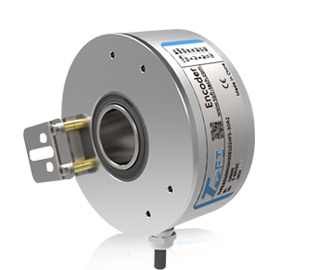

Φ90mm-Incremental Encoder
Φ90mm-Incremental Encoder
  • Accurate light sensing technology
  • 5000 ppr Resolution up to 5000ppr
  • Hollow shaft 20-30mm
  • flexible bracketinstallation
Open in the product filters

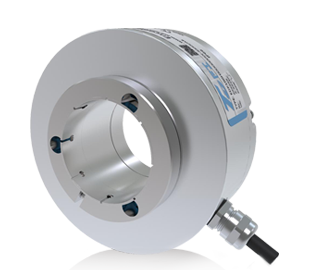

Φ100、120mm-Incremental Encoder
Φ100、120mm-Incremental Encoder
  • Accurate light sensing technology
  • 5000 ppr Resolution up to 5000ppr
  • Solid shaft diameter 30-45mm
  • Large aperture 50-65mm
  • Flexible bracket installation, insulated shaft sleeve
Open in the product filters
