Absolute Encoder

JSCA50-CAN2.0B Series

  • JSCA50 series
  • Sensing method Magnetic
  • Functional principle Multiturn
  • Mltiturn technology Mechanical gears without batteries
  • Housing size Φ50mm
  • Solid keyway shaft Φ25mm,Solid shaft Φ6、Φ8mm,Half hollow shaft Φ8、Φ10mm
  • Max. resolution 20Bit
  • Steps per turn 4096/12Bit
  • Number of turn 256/8Bit
  • Interface CAN2.0B
  • Supply voltage DC5V、DC10-30V
  • Protection IP54、IP65

Technical parameter

Technical – Machine characteristics

Shaft diameter Solid shaft with keyway Φ25 mm

MaterialAluminum alloy

Shell material Tensile iron shell +Black painted

Shaft loading Max. 30 N Axial

Radial loadMax. 60 N Axial

Rotatinal speed Max. 3000 min

Shock resistance 50g,13ms

Shock resistance 10g,10...2000Hz

Protection grade IP54/IP65

Working temperature-40℃...+80℃

Storage temperature -40℃...+80℃

Weight ≈120g

Wiring method Radial direction

Technical – Electrical characteristics

Interface CAN2.0B

Transmission rateMax 1MBit/s



The node addressProgrammable setting

Counter directionProgrammable setting

Operating voltage10…30VDC

No-load current≤80mA

Meet the standardDSP-406 V3.2 DS 301 V4.02


Emission interferenceEN61000-6-4

Circuit protectionSurge protection 、Reverse polarity protection 、ESD protection

Ordering information

Ordering example:JSCA50SK25B0812S59T10-30R6

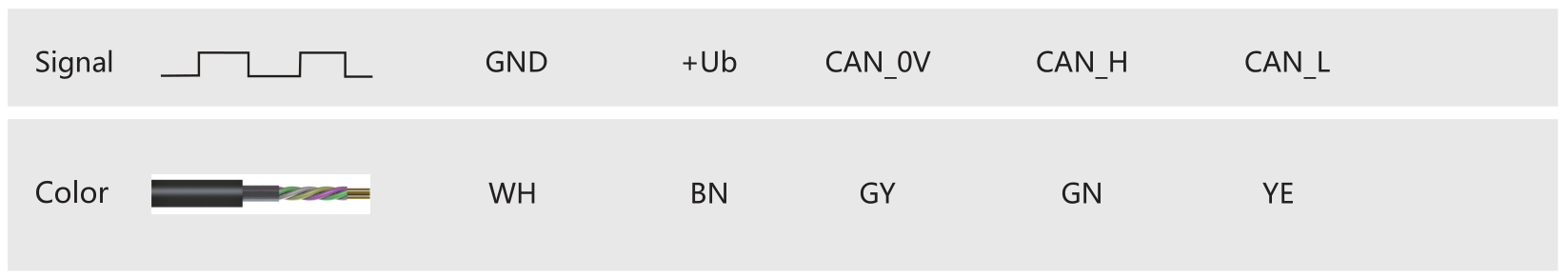

Terminal assignment



File nameFile thumbnailFile sizeDownload link
