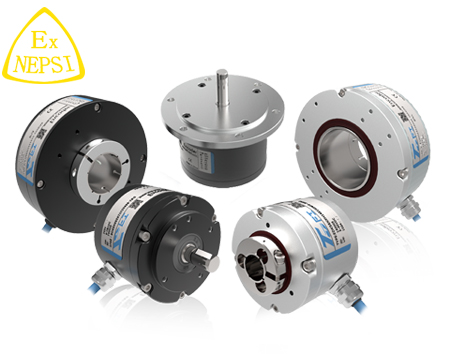

Explosion-proof Encoder

This type of intrinsically safe + dust-type composite explosion-proof encoder is suitable for encoders around or under explosive environments, especially designed for explosive environments such as gas and dust

  • Working in harsh and shocking environments, it can provide reliable and high-precision encoders for measuring signals.
  • Robust structure, high shock resistance and corrosion resistance, wide temperature range
  • Optimize shaft and bearing to prevent shaft current, junction box installation

Product Series

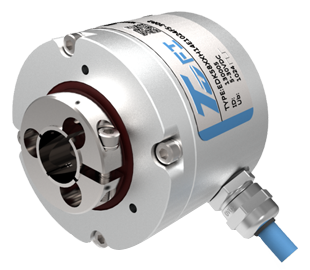

Φ58mm-Intrinsic safety type+explosion proof encoder
Φ58mm-Intrinsic safety type+explosion proof encoder
  • Precise light sensing technology
  • Ex ib Ⅱ C T4 Gb Ex tD A21 IP66 T80℃
  • Max. resolution  512PPR
  • Operating temperature -40℃~+85℃
  • Blind hollow shaft  Φ10、Φ12、Φ14mm
  • Protection IP66
Open in the product filters
Φ68mm-Intrinsic safety type +explosion proof encoder
Φ68mm-Intrinsic safety type +explosion proof encoder
  • Precise light sensing technology
  • Ex ib Ⅱ C T4 Gb Ex tD A21 IP66 T80℃
  • Max. resolution  512PPR
  • Operating temperature -40℃~+85℃
  • Blind hollow shaft   Φ6、Φ8、Φ10mm
  • Protection  IP66
Open in the product filters

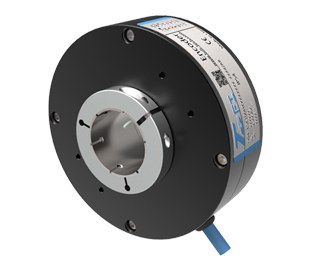

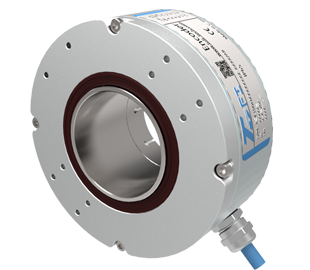

Φ100mm-Intrinsic safety type +explosion proof encoder
Φ100mm-Intrinsic safety type +explosion proof encoder
  • Precise light sensing technology
  • Ex ib Ⅱ C T4 Gb Ex tD A21 IP66 T80℃/Ex ib Ⅱ C T4 Gb
  • Max. resolution  20~5000PPR
  • Operating temperature -40℃~+85℃
  • Blind hollow shaft Φ25、Φ30、Φ35、Φ38、Φ40、Φ42、Φ45mm
  • Protection IP64/ IP66
Open in the product filters
Φ115mm-Intrinsic safety type+explosion proof encoder
Φ115mm-Intrinsic safety type+explosion proof encoder
  • Precise light sensing technology
  • Ex ib Ⅱ C T4 Gb Ex tD A21 IP66 T80℃
  • Max. resolution  1024PPR
  • Operating temperature  -40℃~+85℃
  • Blind hollow shaft  Φ10、Φ11、Φ12mm
  • Protection  IP66
Open in the product filters

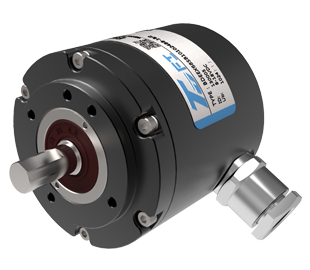

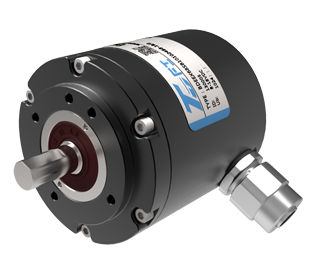

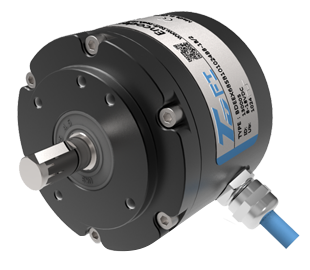

Φ68mm-Flameproof type+Explosion proof encoder
Φ68mm-Flameproof type+Explosion proof encoder
  • Precise light sensing technology
  • Ex d II C T5/T6 Gb Ex tD A21 IP66 T95℃/T80℃
  • Max. resolution 1200PPR
  • Operating temperature -40℃~+85℃
  •  Solid shaft Φ10mm
  • Protection IP66
Open in the product filters

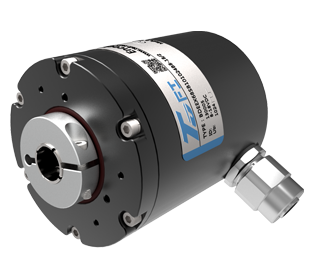

Φ68mm-Flameproof type+Explosion proof encoder
Φ68mm-Flameproof type+Explosion proof encoder
  • Precise light sensing technology
  • Ex d II C T5/T6 Gb Ex tD A21 IP66 T95℃/T80℃
  • Max. resolution  1200PPR
  • Operating temperature  -40℃~+85℃
  • Half hollow shaft  Φ10、Φ12、Φ14mm
  • Protection IP66
Open in the product filters

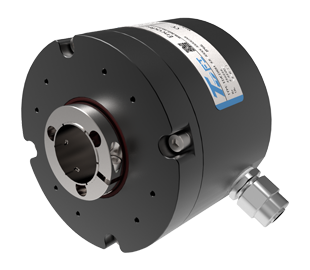

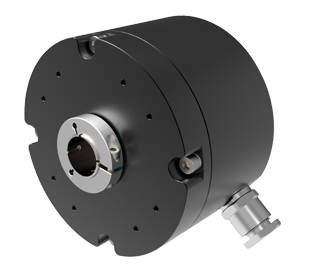

Φ100mm-Flameproof type+Explosion proof encoder
Φ100mm-Flameproof type+Explosion proof encoder
  • Precise light sensing technology
  • Ex d II C T5/T6 Gb Ex tD A21 IP66 T95℃/T80℃
  • Max. resolution  3000PPR
  • Operating temperature  -40℃…+85℃
  • Half hollow shaft  Φ20、Φ25、Φ30、Φ35、Φ38、Φ40、Φ42、Φ45mm
  • Protection IP66
Open in the product filters

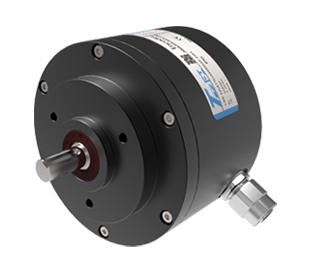

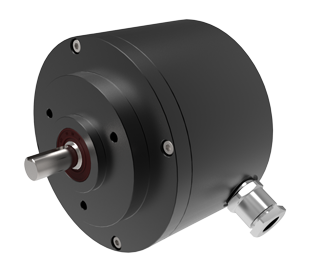

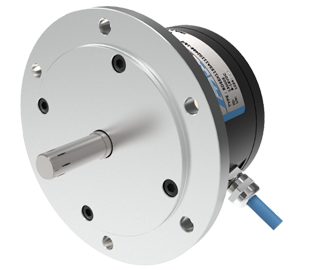

Φ116mm-Flameproof type+Explosion proof encoder
Φ116mm-Flameproof type+Explosion proof encoder
  • Precise light sensing technology
  • Ex d II C T5/T6 Gb Ex tD A21 IP66 T95℃/T80℃
  • Max. resolution 1200PPR
  • Operating temperature -40℃~+85℃
  • Solid shaft  Φ12mm
  • Protection IP66
Open in the product filters
