Incremental Encoder

Accurate position and speed feedback can be achieved even in harsh environments.Incremental encoders generate a series of pulses in response to linear or rotational motion.These pulses can be used to measure speed or feed back to a PLC or counter to track relative position.

  • Compact boundary dimension
  • Strong modular design
  • Outer diameter from 38mm to hollow shaft diameter 65mm
  • Precise optical sensing technology or strong magnetic inductivetechnology
  • Support all common installation programand HTL, TTL output signal
Filter by attribute
Dimensions
Installation method
Shaft diameter
Operating temperature
Protection
Optional
Picture Product Series Housing size Shaft diameter Max. resolution Output Remarks Download file
ESK5805S Φ58mm Solid shaft Φ9.52、Φ10mm ≤1500PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
ESK5803S Φ58mm Solid shaft Φ6mm ≤1500PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
ESG5805S Φ58mm Solid shaft Φ9.525、Φ10mm ≤5000 PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
ESG5803S Φ58mm Solid shaft Φ6mm ≤5000 PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector

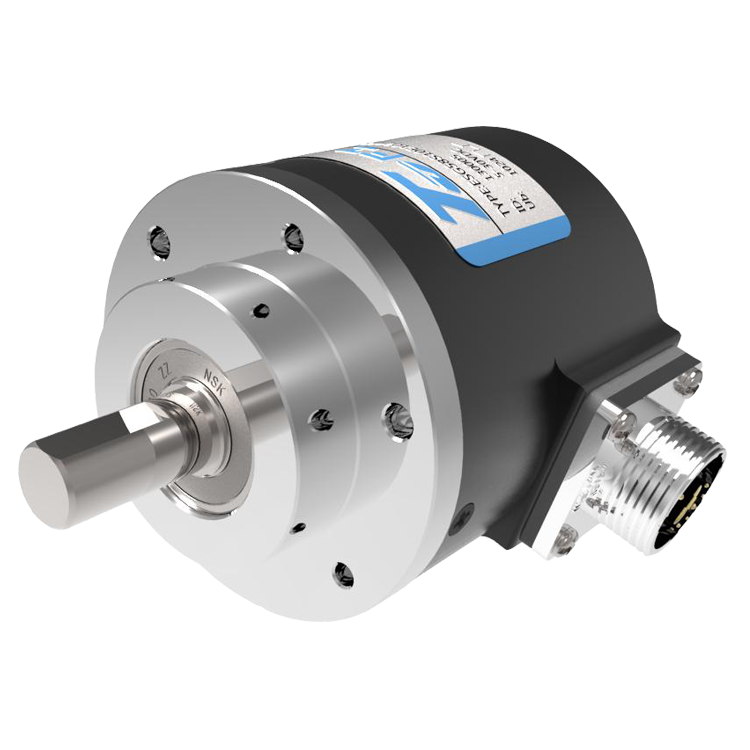

ESG5801S Φ58mm Solid shaft Φ10mm ≤5000 PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
EDK5802S Φ58mm Solid shaft Φ6mm ≤1500 PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
EDK5801S Φ58mm Solid shaft Φ10 mm ≤1500 PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
EDG5803S Φ58mm Solid shaft Φ6mm ≤5000 PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
EDG58S Φ58mm Solid shaft Φ6、Φ8、Φ10 mm ≤5000 PPR RS422/TTL
Push-Pull/HTL
NPN Open Collector
