Incremental Encoder

EDG58S

EDG58S Series
Sensing method Optical
Housing size  Φ58mm
Shaft diameter  Φ6、Φ8、Φ10 mm
Max. resolution  5000PPR
Supply voltage  5VDC,5-30VDC,9-26VDC
Protection  IP65/IP67

Technical parameter

Technical – Machine characteristics

Shaft diameter Solid shaft with key Φ6、Φ8、Φ10 mm

Sensing methodOptical

Max. resolution5000 PPR

Supply voltage 5VDC,5-30VDC,9-26VDC

ProtectionIP65/IP67

Speed6000RPM

Shaft loadingMax. 40 N Axial;max. 80 N Radial

Shock resistance100g,6ms

Vibration resistance10g,10...2000HZ

Starting torque<0.015 Nm

MaterialsSolid shaft :Stainless steel
Flange :Aluminum alloy
Housing:Aluminum alloy

Working temperature-40 ℃…+85 ℃

Storage temperature-40 ℃…+85 ℃

WeightApprox. 200g( Cable 2m)

Technical – Electrical characteristics

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422(TTL Compatible)

Pulse rateMax. 5000 P/R

Supply voltage 5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channel Max. ±80 mA

Pulse frequency Max. 300 KHz

Signal level high Min. Ub-1.5V

Signal level low Max. 0.8V

Rise time Tr Max. 1μs

Fall time TfMax. 1μs

Short circuit proof outputs Yes

Ordering information

Ordering example:EDG58S10C1024F5-30R2

Terminal assignment

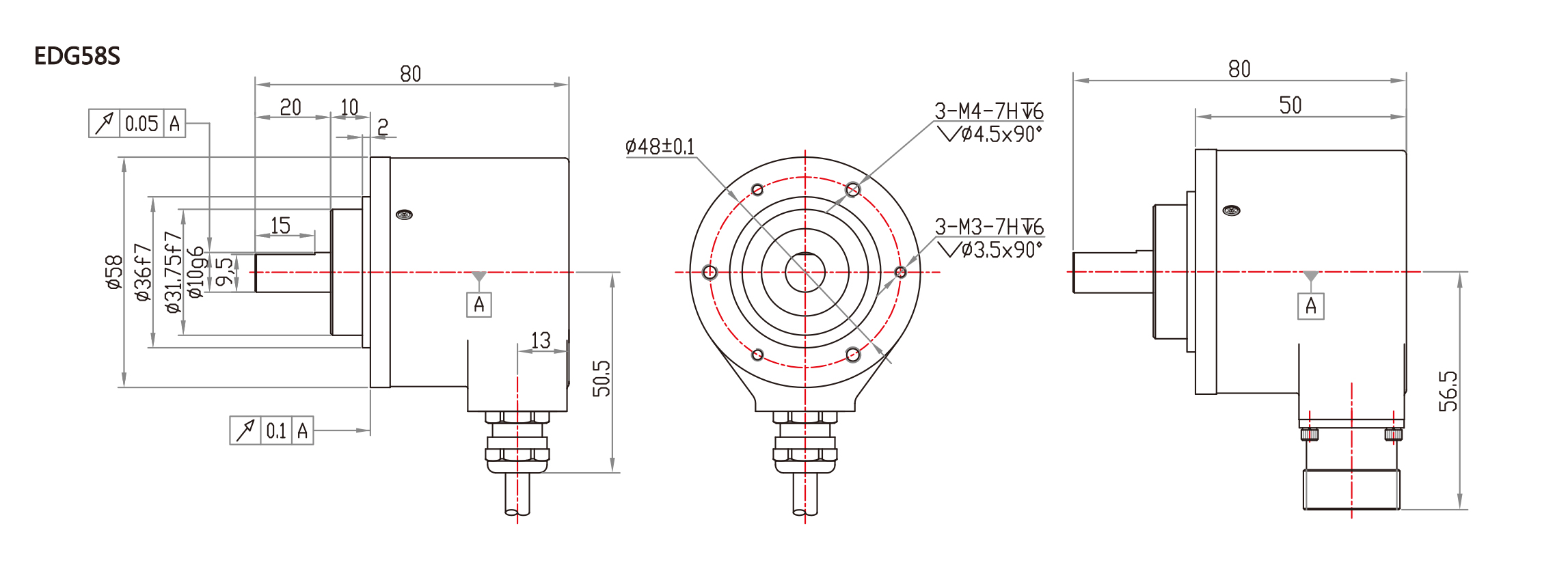

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
EDG58S Series Incremental Encoder4.79 M
