Incremental Encoder

ESG6601SM

ESG66SM Series
Sensing method Optical
Housing size Φ66 mm
Shaft diameter M10 mm
Max. resolution 5000 PPR
Supply voltage 5VDC,5-30VDC,9-26VDC
Protection IP54/IP65

Technical parameter

Technical – Machine characteristics

Shaft diameter Threaded solid shaft M10 mm

Sensing methodOptical

Max. resolution≤5000PPR

Supply voltage 5VDC,5-30VDC,9-26VDC

ProtectionIP54/IP65

Speed6000RPM

Shaft loadingMax. 40 N Axial ; Max. 80 N Radial

Shock resistance100g,6ms

Vibration resistance10g, 10…2000HZ

Starting torque<0.05 Nm

MaterialsFlange:Aluminum alloy/Anodized aluminum alloy
Solid shaft :Stainless steel
Housing:Tensile iron shell + Black painted/Anodized aluminum alloy

Working temperature-20℃…+70℃

Storage temperature-40℃…+85℃

WeightApprox. 370g

Technical – Electrical characteristics

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422(TTL Compatible)

Pulse rateMax. 5000 P/R

Supply voltage 5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channel Max. ±80 mA

Pulse frequency Max. 300 KHz

Signal level high Min. Ub-1.5V

Signal level low Max. 0.8V

Rise time Tr Max. 1μs

Fall time TfMax. 1μs

Short circuit proof outputs Yes

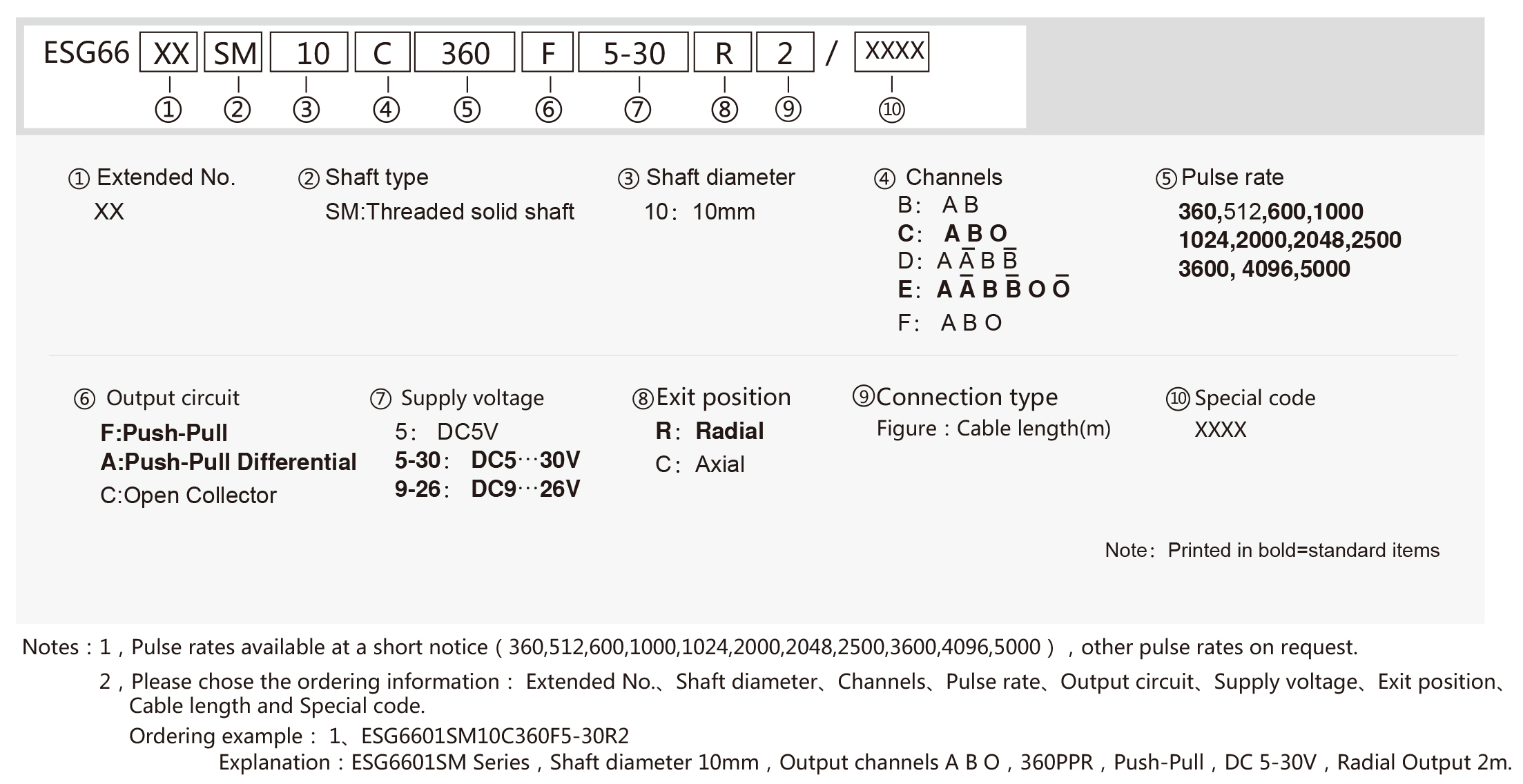

Ordering information

Ordering example:ESG6601SM10C360F5-30R2

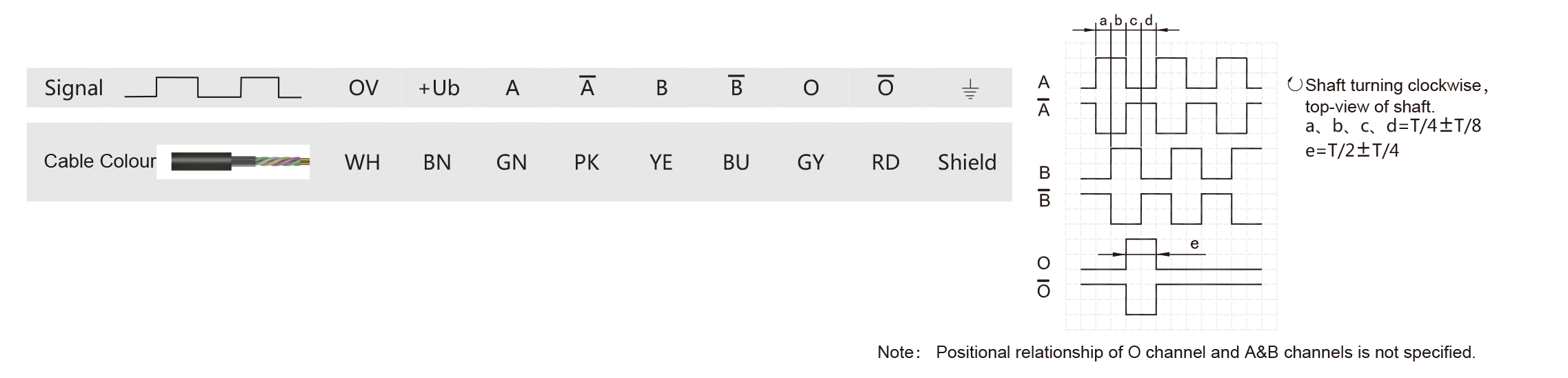

Terminal assignment

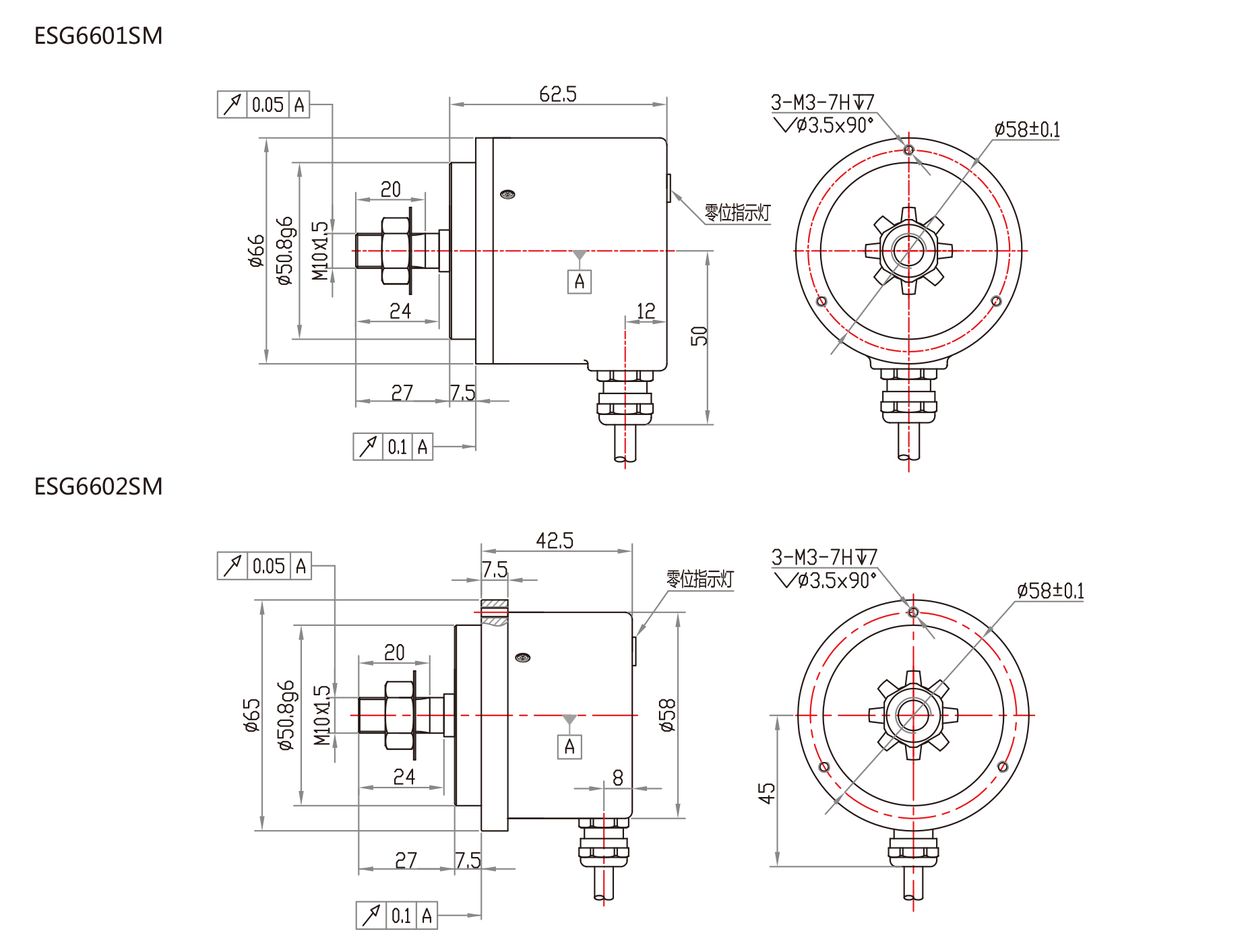

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
ESG66SM Series Incremental Encoder2.61 M
