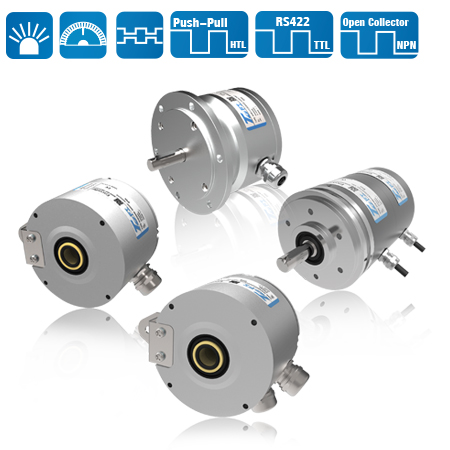

Heavy-duty encoder

Heavy-duty encoder technology, suitable for extreme applications, can withstand severe temperature fluctuations and adapt to harsh environments, showing robustness in harsh environments, has extremely accurate performance.

The encoder can work in harsh and impact big environment, provide reliable and high accuracy measuring signal.
The encoder has strong structure, high shock resistance and corrosion resistance, wide temperature range.
Optimization of shaft and bearing to prevent the shaft current, with junction box installation.

Filter by attribute

Product Series	Housing size	Shaft diameter	Max. resolution	Output	Remarks
EHK105HS series	Φ105mm	Hollow shaft Φ12、Φ16、Φ19、Φ20 mm axis of cone17（1:10）	≤2500PPR	RS422/TTL Push-Pull/HTL NPN Open Collector	-
EHK105HK series	Φ105mm	Hollow shaft Φ16、Φ20、Φ25mm	≤2500PPR	RS422/TTL Push-Pull/HTL NPN Open Collector	-
EHK100H series	Φ100mm	Hollow shaft Φ30、Φ35、Φ38、Φ40、Φ42、Φ45mm	≤3000PPR	RS422/TTL Push-Pull/HTL NPN Open Collector	-
