Absolute Encoder

Reliable and accurate position feedback without reference point, and the shaft is still rotating after power failure.

  • Absolute encoder to use precise optical technology and strong magnetic sensor technology to sensor location information
  • extremely rich products series; Single-turn and multi-turn technologies provide a variety of signal interfaces and shaft types
  • Positioning information when the power is maintained
  • No battery more than ring technology: optical mechanical gears without batteries
  • High shock resistance, anti jitter performance
Filter by attribute
Sensing method
Functional principle
Installation method
Shaft type
Steps per turn
Number of turn
Picture Product Series Housing size Shaft diameter Number of turn Steps per turn Output Remarks Download file

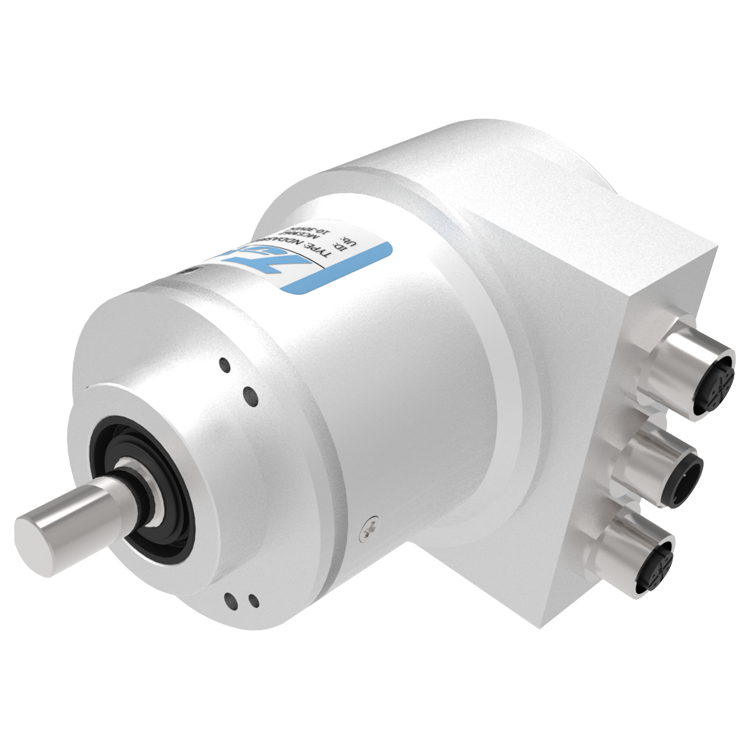

NDDA58S Series Φ58mm Solid shaft Φ6、Φ10mm ≤4096/12Bit ≤65536/16Bit PROFINET

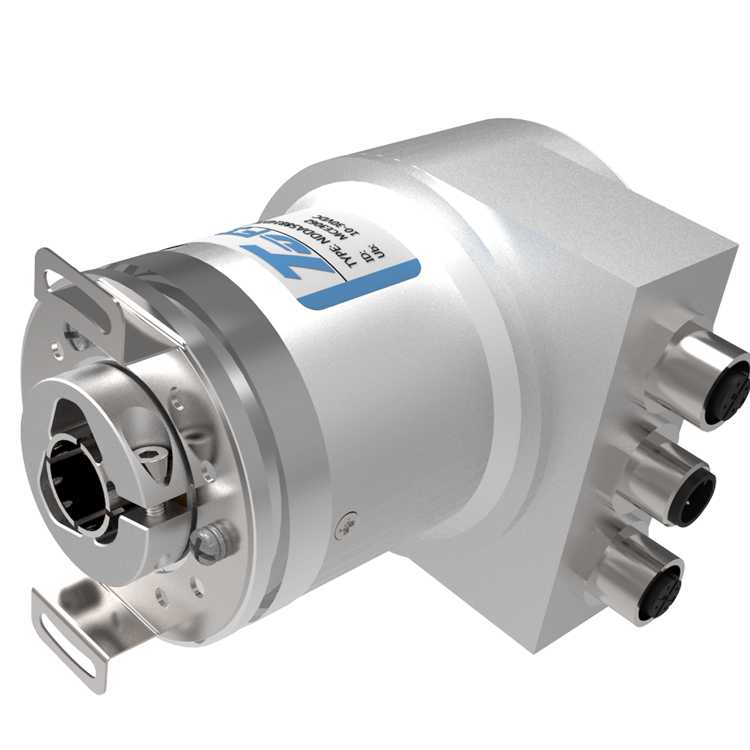

NDDA58B Series Φ58mm Hollow shaft Φ10、Φ12、Φ14 ≤4096/12Bit ≤65536/16Bit PROFINET
