Absolute Encoder

NDDA58S Series

NDDA58S Series
Sensing method Optical
Housing size Φ58 mm
Mltiturn technology Mechanical gears without batteries
Housing size Φ58mm
Shaft diameter solid shaft Φ6、Φ10mm
Max. resolution 28Bit
Steps per turn 65536/16Bit
Number of turn 4096/12Bit
Interface PROFINET
Supply voltage DC10-30V
Protection IP65/IP67

Technical parameter

Technical – Machine characteristics

Shaft diameter Solid shaft Φ6、Φ10mm

ProtectionIP65/IP67

MaterialAluminum alloy

Shell materialAluminum alloy

Shaft loading≤40N

Radial load≤80N

Rotatinal speedMax. 6000RPM

Shock resistance100g，6ms

Shock resistance10g，10...2000Hz

Protection gradeIP65/IP67

Working temperature-40℃...+80℃

Storage temperature-40℃...+80℃

Weight≈600g

Wiring methodTerminal box，3×M12 connector

Technical – Electrical characteristics

InterfacePROFINET-RT

Resolution 10/100Mbit

CodeBinary

Output driverEthernet

Startup time＜250ms

Interface cycle time≥1ms

Transfer rate≤250K bit/s （SSI）

Power consumption＜2.5W

linearity16bit±2LSB，13bit±1LSB，12bit±0.5LSB

Input current＜6mA （Parallel）

Programming functionResolution、Default setting、Precast counting direction、IP address

Anti-interferenceEN61000-6-2

Launch interferenceEN61000-6-4

Circuit protectionSurge protection（1KV）、Reverse polarity protection 、ESD protection（8KV）

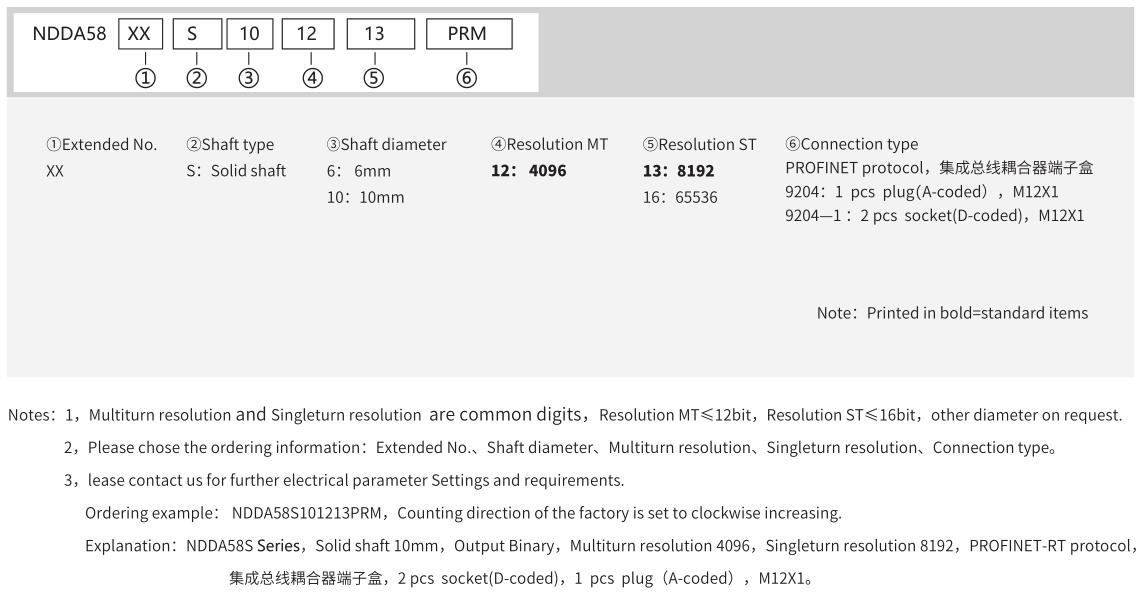

Ordering information

Ordering example：NDDA58S101213PRM

Terminal assignment

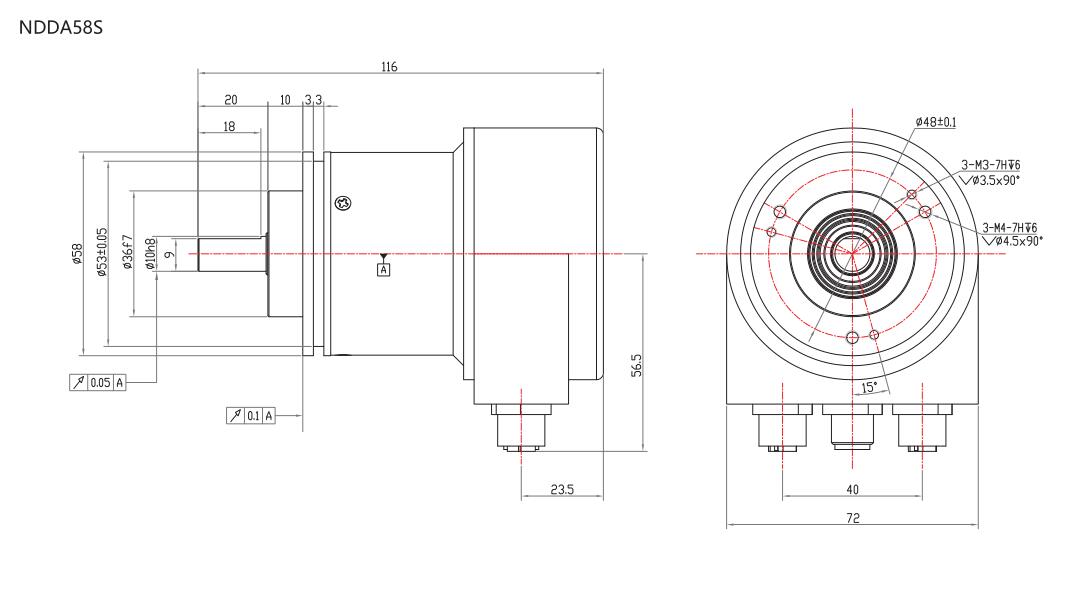

Dimensions

Download

File name	File thumbnail	File size	Download link
NDDA58S Series absolute Encoder		0.00 M
