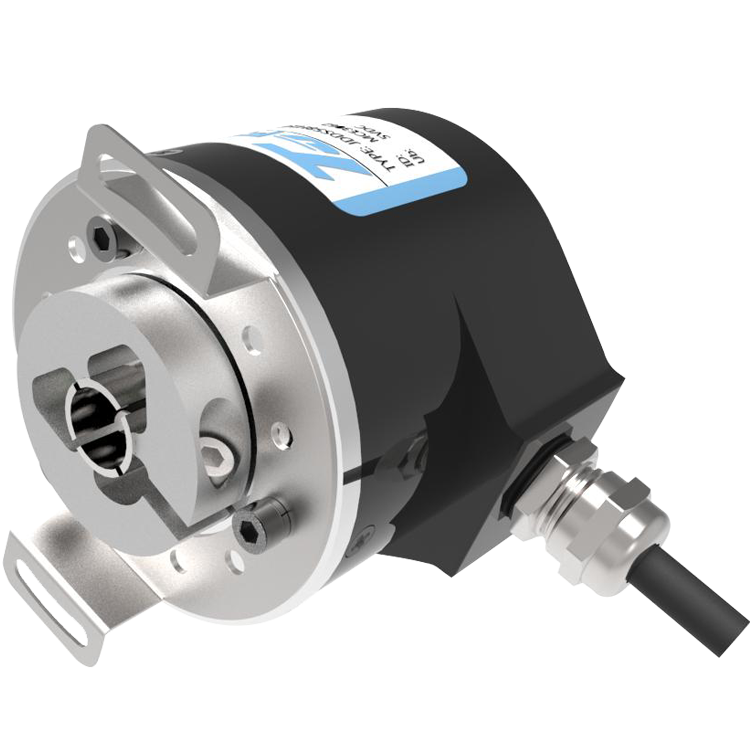

Absolute Encoder

JDDS58H Series

  • JDDS58H Series
  • Sensing method Optical
  • Housing size Φ58 mm
  • Shaft diameter Φ10、Φ12、Φ14 mm
  • Measurement range 0~360º
  • Max. resolution 65536 (16 bit)
  • Supply voltage 5VDC,10-30VDC
  • Protection IP65

Technical parameter

Technical – Machine characteristics

Shaft diameter Blind hollow shaft Φ10、Φ12、Φ14mm


MaterialAluminum alloy
Housing:Aluminum alloy

Starting torque≤0.05Nm

Shaft loading Max. 40 N Axial,max. 80 N Radial

Shock resistance100g,6ms

Vibration resistance10g,10...2000Hz

Working temperature-40℃...+80℃

Storage temperature-40℃...+80℃

Weight Approx. 400g

Exit positionRadial

Technical – Electrical characteristics


Resolution 4800 9600 19200 38400 115200 bps

Code Hexadecima

Supply voltage 0-99

Data response 2ms (9600 19200 38400 115200 bps)
5ms (4800bps)

No-load current≤80mA

Linearity 16 bit ±2LSB,13 bit ±1LSB,12 bit ±0.5LSB

Counting direction Can be set(Clockwise,increasing ,top-view of shaft)

External zero setting Can be set,on-delay>100ms

Anti-interference EN61000-6-2

Emission interference EN61000-6-4

Circuit protection Surge protection(1KV) 、Reverse polarity protection 、ESD protection(8KV)

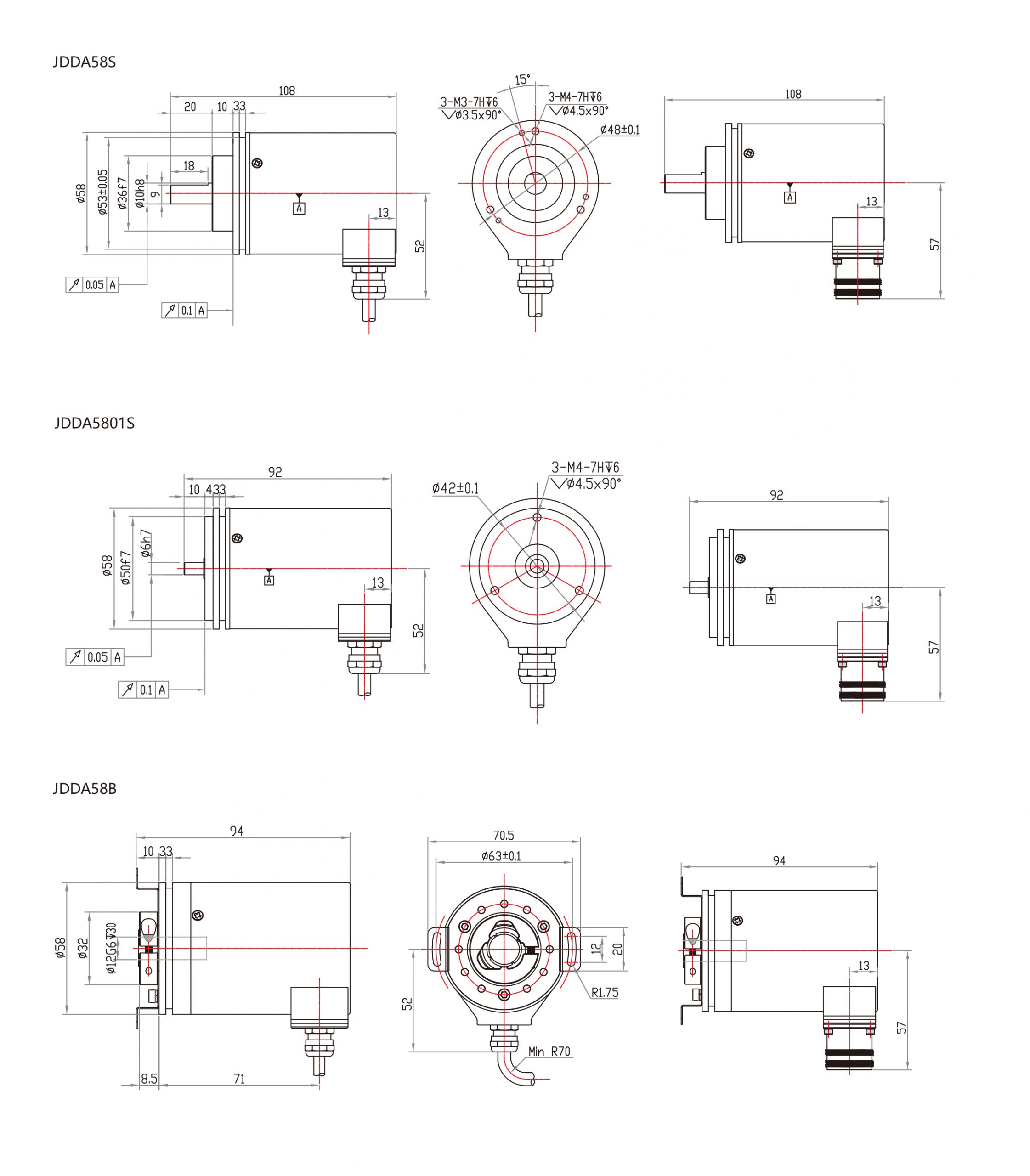

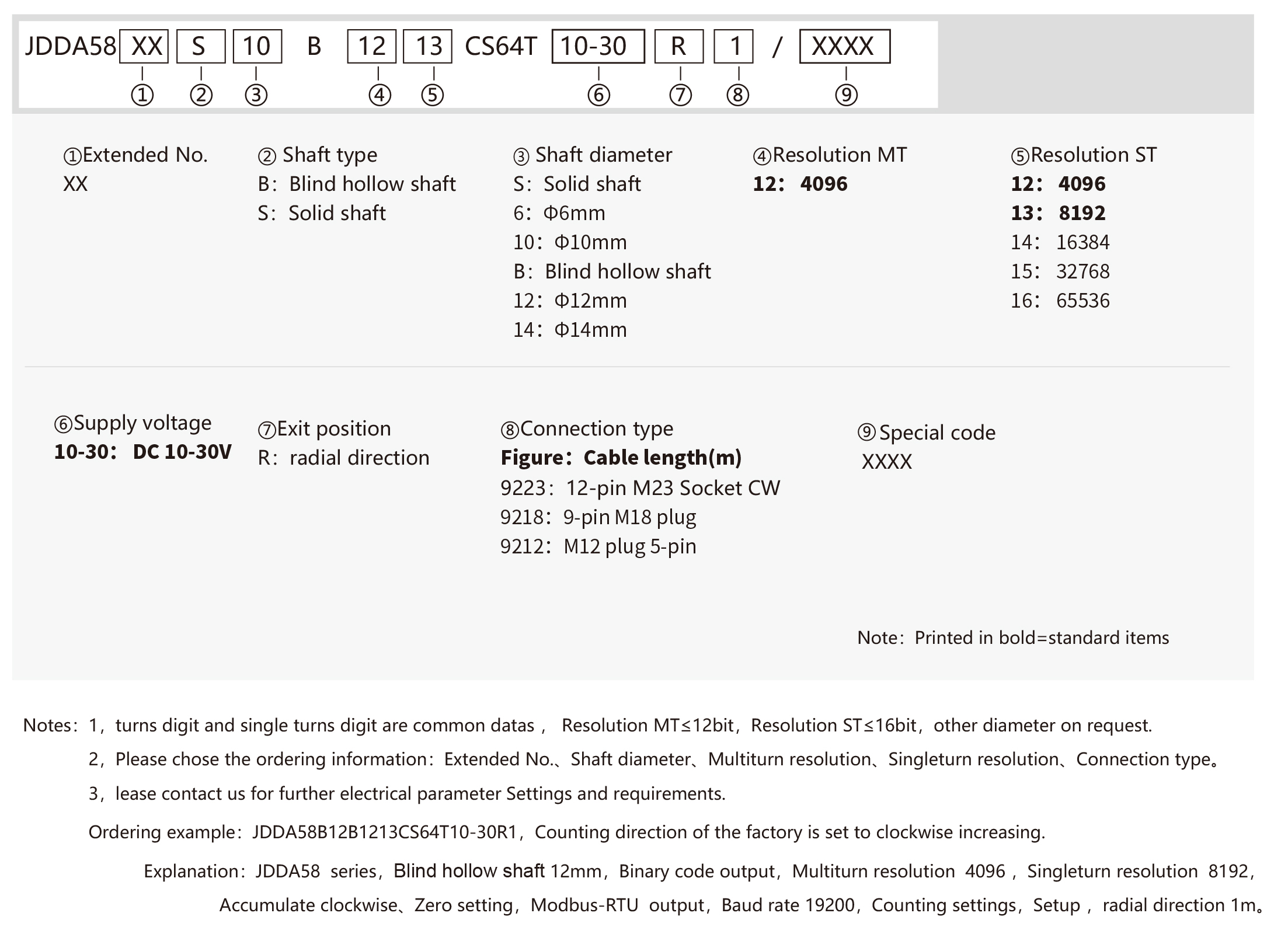

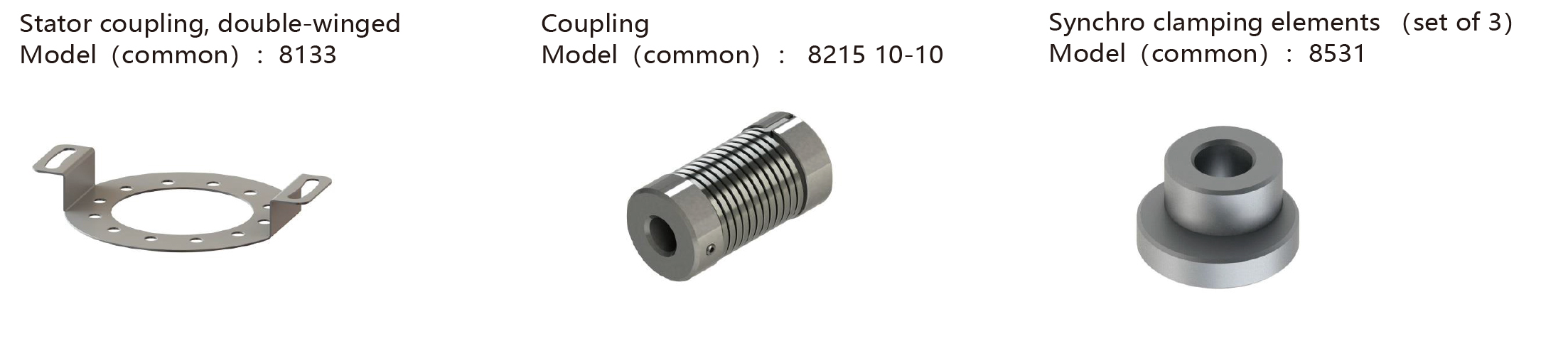

Ordering information

Ordering example:JDDA58B12B1213CS64T10-30R1

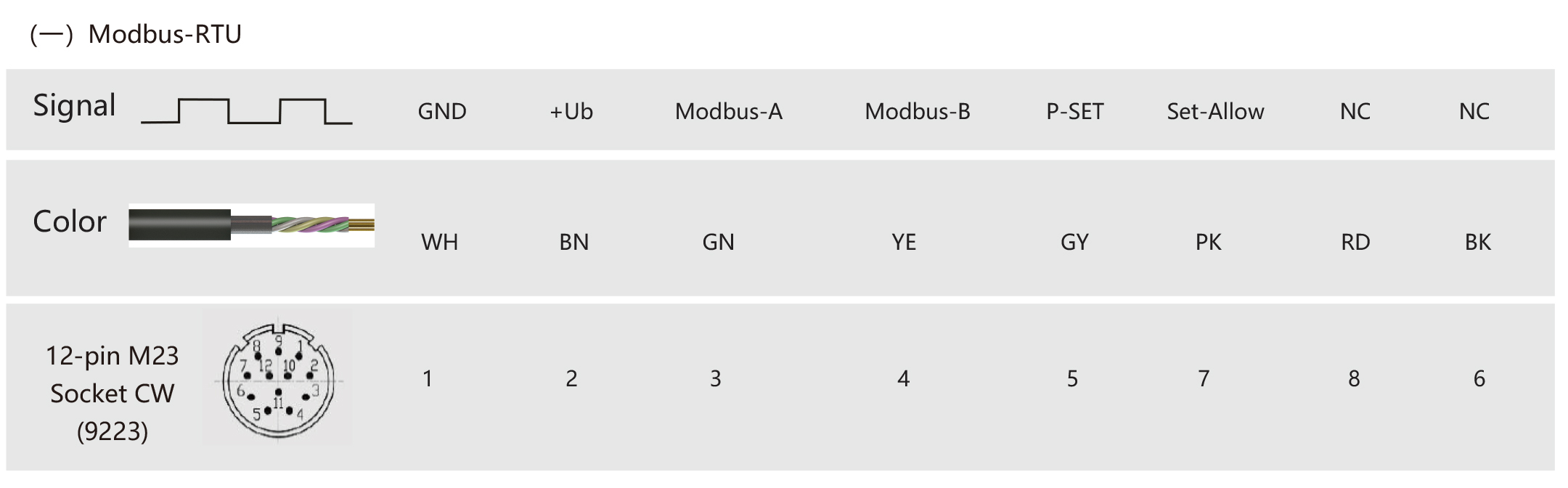

Terminal assignment
