Absolute Encoder

JDCM36S-CANopen Series

  • JDCM36S Series
  • Absolute Encoder
  • Sensing method Magnetic
  • Functional principle Multiturn
  • Multiturn technology Mechanical gears without batteries
  • Housing size Φ36.5mm
  • Solid shaft Φ6mm
  • Max. Resolution 28Bit
  • Steps per turn 65536/16Bit
  • Number of turn 4096/12Bit
  • Interface CANopen
  • Supply voltage 10-30VDC
  • Protection IP67

Technical parameter

Technical – Machine characteristics

Shaft diameter Solid shaft Φ6mm

ProtectionIP67

Rotatinal speed3000rpm

Shaft loadingMax. ≤20N Axial;Max. ≤40N Radial

Shock resistance100g,6ms

Vibration resistance10g,10...2000Hz

MaterialAluminium alloy

Shell materialAluminium alloy

Operating temperature-40℃...+85℃

Storage temperature-40℃...+85℃

Weight≈130g

Wiring methodRadial

Technical – Electrical characteristics

InterfaceCANopen

Transmission rateMax 1MBit/s

CodeBinary

Supply voltage10-30VDC

No-load current≤100mA

Baud rateProgrammable setting,The default is 125kbit/s

The node addressProgrammable setting,The default node ID is 20H

Counting directionProgrammable setting

Anti-interferenceEN61000-6-2

Launch interferenceEN61000-6-4

Circuit protectionSurge protection 、reverse power protection 、ESD protection

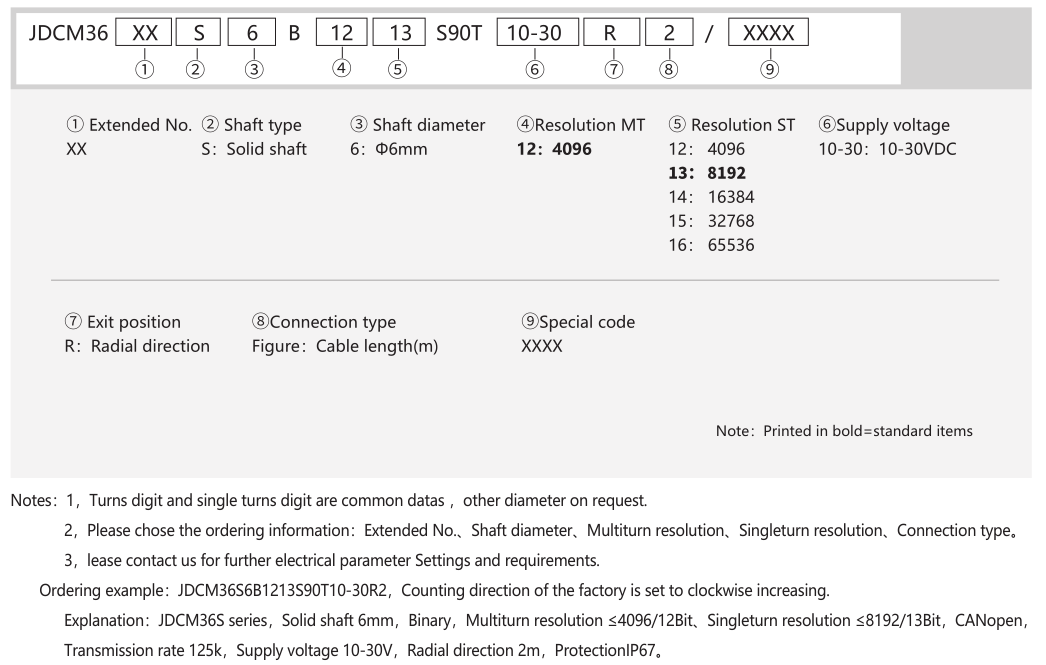

Ordering information

Ordering example:JDCM36S6B1213S90T10-30R2

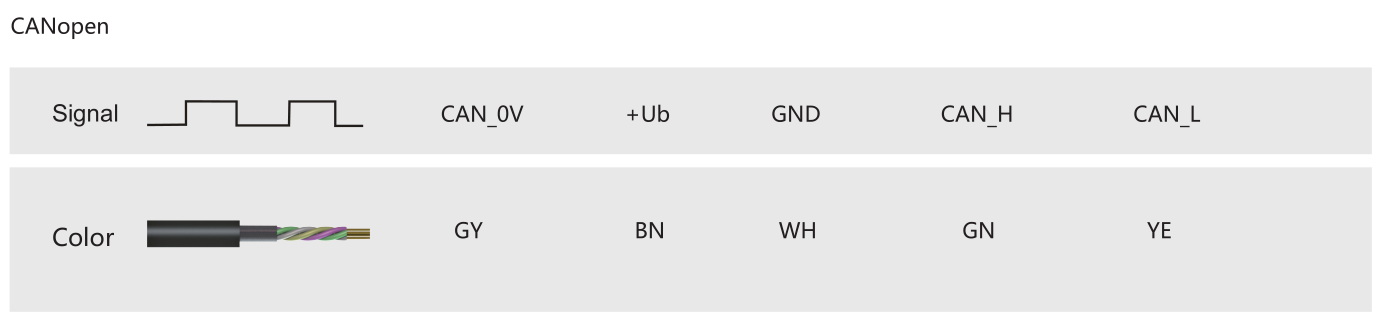

Terminal assignment

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
JDCM36S-CANopen Series1.84 M
