JDCE40S-CANopen Series

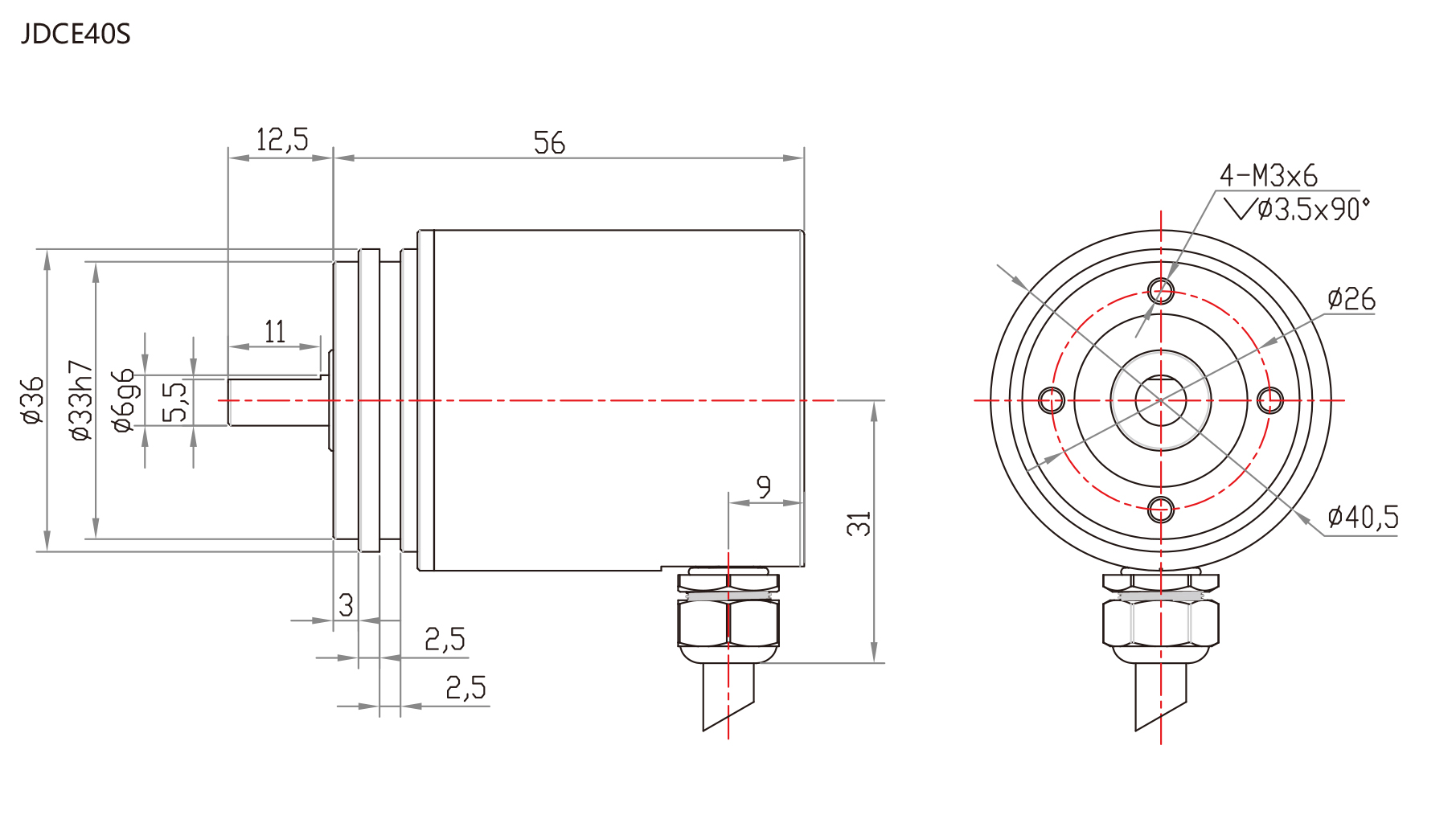

Shaft diameter Solid shaft Φ6mm、Φ10mm

ProtectionIP67

Rotatinal speed4000 rpm

Shaft loadingMax. ≤40N Axial；Max. ≤80N Radial

Shock resistance100g，6ms

Vibration resistance10g，10...2000Hz

MaterialAluminium alloy

Shell materialAluminium alloy

Operating temperature-40℃...+85℃

Storage temperature-40℃...+85℃

Weight≈180g

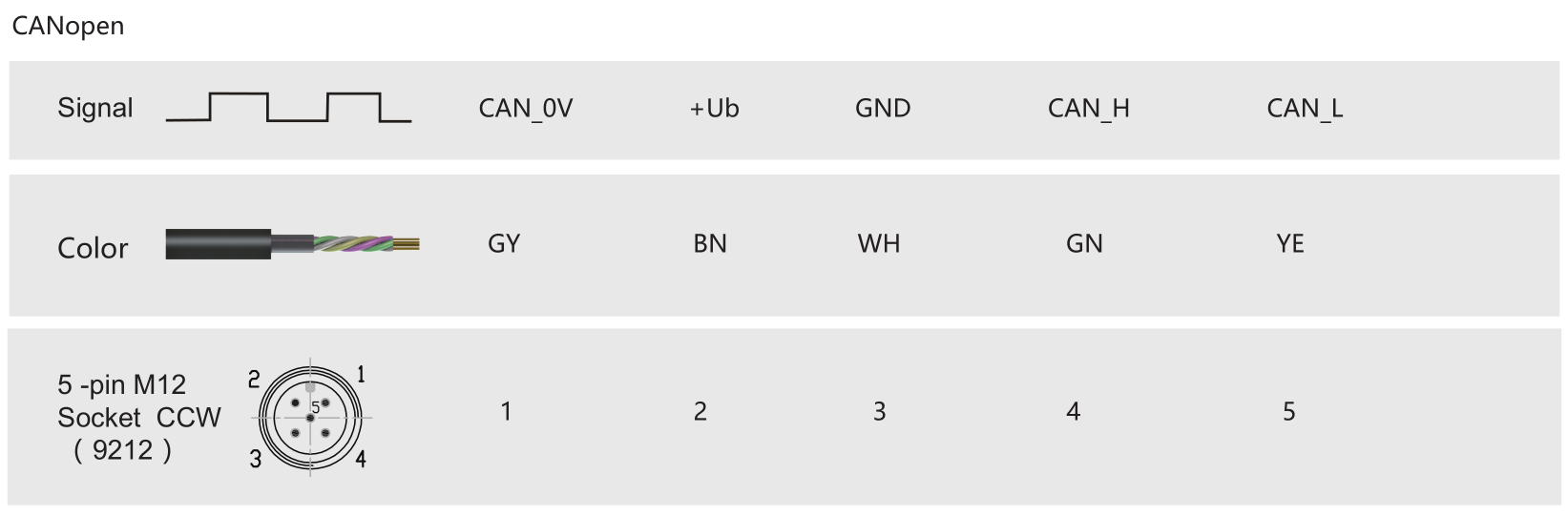

Wiring methodM12 radial socket（5-pin CCW）

InterfaceCANopen

Transmission rateMax 1MBit/s

CodeBinary

Supply voltage10-30VDC

No-load current≤100mA

Baud rateProgrammable setting，The default is 125kbit/s

The node addressProgrammable setting，The default node ID is 20H

Counting directionProgrammable setting

Anti-interferenceEN61000-6-2

Launch interferenceEN61000-6-4

Circuit protectionSurge protection 、reverse power protection 、ESD protection
