FDCE58S Series-CANopen+Incremental signal

FDCE58S Series
Absolute encoder
Sensing method Magnetic
Functional principle Multiturn
Housing size Φ60mm
Solid shaft Φ10mm
Max. Resolution 25bit
Max. Resolution 32bit
Steps per turn 16384/14bit
Number of turn 262144/18bit
Interface CANopen、CANopen+Incremental signal
Incremental signal resolution 512PPR、1024PPR、2048PPR、4096PPR
Incremental signal A+A- B+B-
Operating voltage 10-30VDC
Protection IP67

Technical parameter

Technical – Machine characteristics

Shaft diameterSolid shaft Φ10mm

MaterialAluminum alloy

Shell materialAluminum alloy

Shaft loading≤40N

Radial load≤80N

Rotatinal speedMax. 6000RPM

Shock resistance100g，6ms

Vibration resistance10g，10...2000Hz

ProtectionIP67

Operating temperature-40℃...+85℃

Storage temperature-40℃...+85℃

Weight≈220g

Wiring methodRadial 、M12 rsocket（5-pin CCW)

Technical – Electrical characteristics

Operating voltage10…30VDC

No-load current＜50mA

InterfaceCANopen、CANopen+Incremental signal

Transmission rateMax 1MBit/s

CodeBinary

Baud rateProgrammable setting，The default is 125kbit/s

The node addressProgrammable setting，The default node ID is 20H

Meet the standardDSP-406

Incremental signal resolution512PPR、1024PPR、2048PPR、4096PPR (Other values can be customized)

Incremental signalA+A- B+B-

Incremental outputPush-pull difference（HTL）、RS422（TTL）

Anti-interferenceEN61000-6-2

Launch interferenceEN61000-6-4

Circuit protectionSurge protection, Reverse polarity protection, ESD protection

Ordering information

Ordering example： FDCE58B10B1814P1S90T10-30R1

Terminal assignment

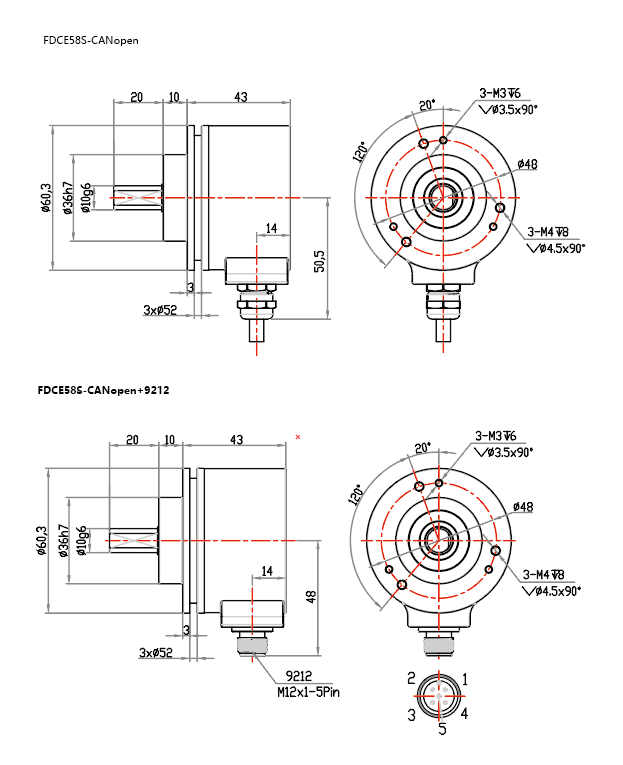

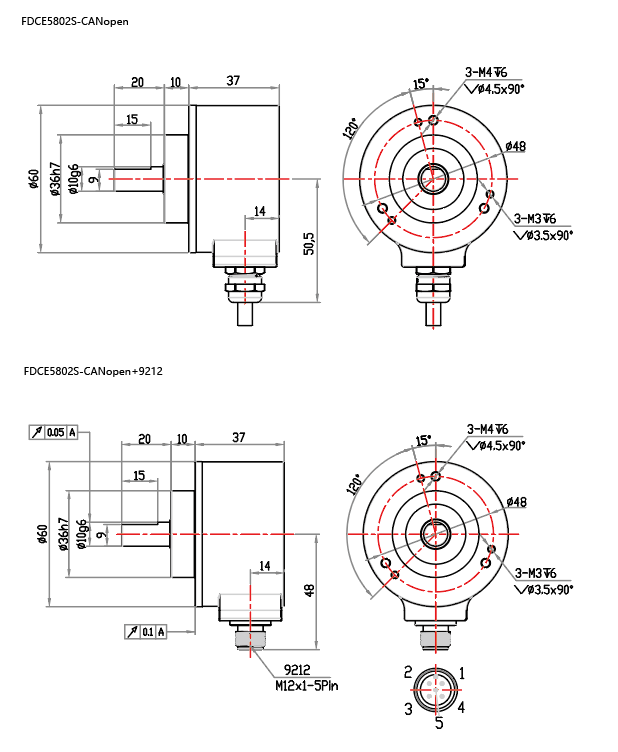

Dimensions

Download

File name	File thumbnail	File size	Download link
FDCE58S Series-CANopen+Incremental signal		0.00 M
