Absolute Encoder

FDCE58S Series-SSI+Incremental signal

FDCE58S Series
Absolute encoder
Sensing method Magnetic
Functional principle Multiturn
Housing size Φ60mm
Solid shaft Φ10mm
Max. Resolution 25bit
Steps per turn 8192/13bit
Number of turn 4096/12bit
Interface SSI、SSI+Incremental signal
Incremental signal resolution 512PPR、1024PPR、2048PPR、4096PPR
Incremental signal A+A- B+B-
Operating voltage 10-30VDC
Protection IP67

Technical parameter

Technical – Machine characteristics

Shaft diameterSolid shaft Φ10mm

MaterialAluminum alloy

Shell materialAluminum alloy

Shaft loading≤40N

Radial load≤80N

Rotatinal speedMax. 6000RPM

Shock resistance100g，6ms

Vibration resistance10g，10...2000Hz

ProtectionIP67

Operating temperature-40℃...+85℃

Storage temperature-40℃...+85℃

Weight≈220g

Wiring method12芯M23插座CW（9223）

Technical – Electrical characteristics

Operating voltage10…30VDC

Transmission rate125K-2M/bit

No-load current＜60mA

CodeGray code

InterfaceSSI、SSI+Incremental signal

Counting directionExternal signal control

Meet the standardDSP-406

Incremental signal resolution≤4096ppr

Incremental signalA+A- B+B-

Incremental outputPush-pull difference（HTL）、RS422（TTL）

Anti-interferenceEN61000-6-2

Launch interferenceEN61000-6-4

Circuit protectionSurge protection, Reverse polarity protection, ESD protection

Ordering information

Ordering example：FDCE5802S10B1213S10T10-30R9223

Terminal assignment

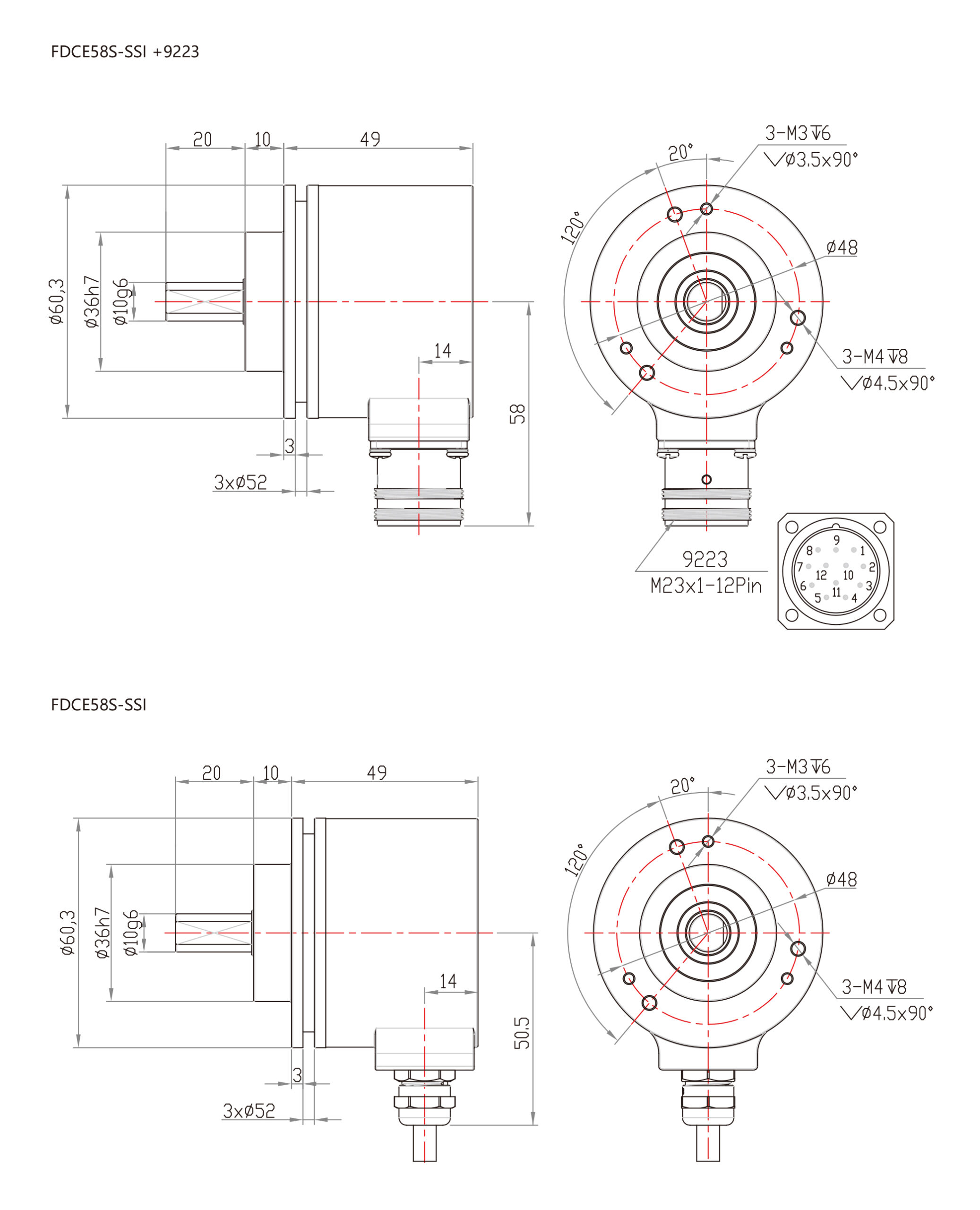

Dimensions
