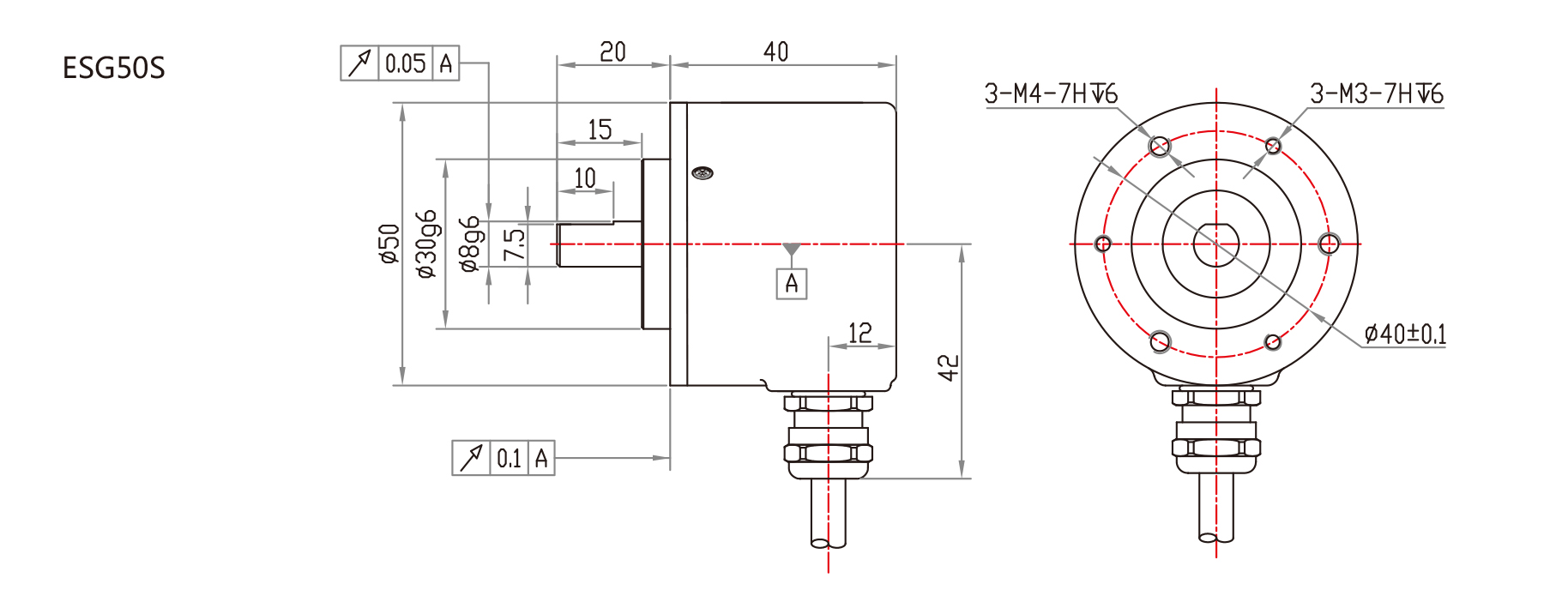

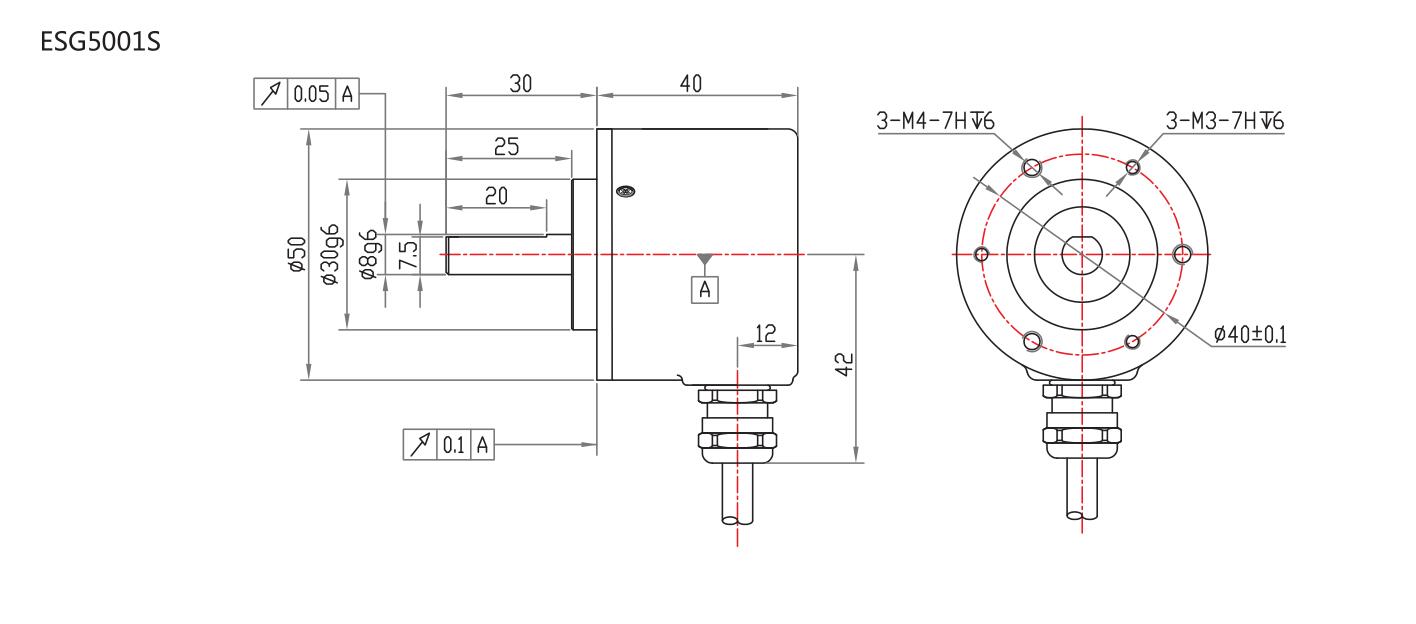

ESG50S

Shaft diameter Solid shaft Φ8mm

Sensing methodOptical

Max. resolution2500PPR

Supply voltage 5VDC,5-30VDC,9-26VDC

ProtectionIP54

Speed6000RPM

Shaft loadingMax. 30 N Axial；Max. 60 N Radial

Shock resistance50g，6ms

Vibration resistance10g，10...2000HZ

Starting torque<0.01Nm

MaterialsSolid shaft ：Stainless steel
Flange ：Aluminum alloy
Housing：Tensile iron shell +Black painted

Working temperature-20~+70 ℃

Storage temperature-30~+85 ℃

WeightApprox. 150g

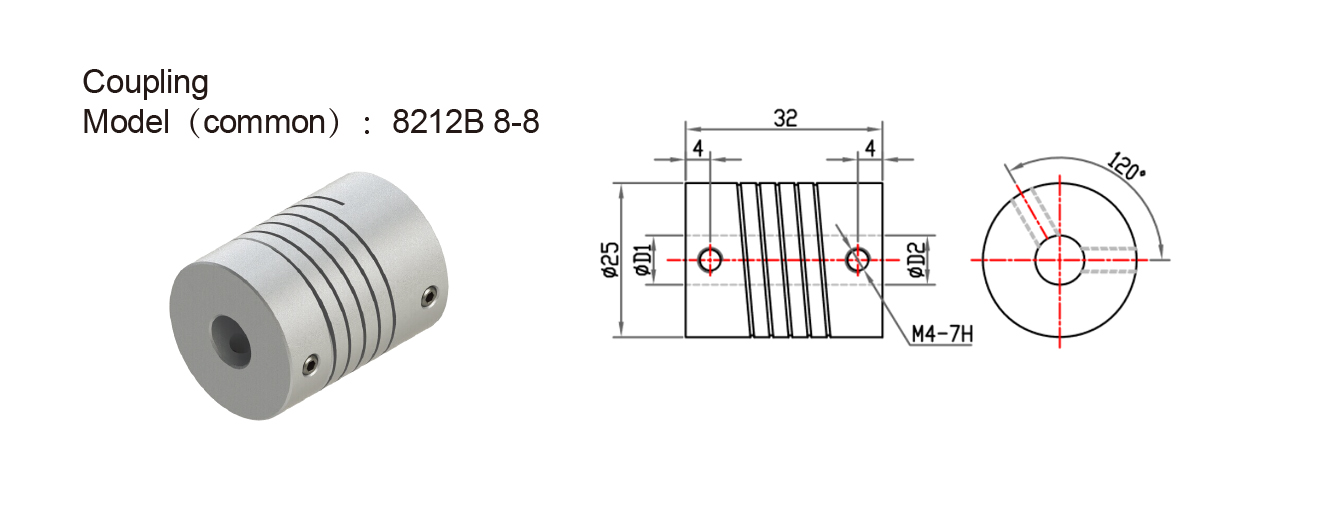

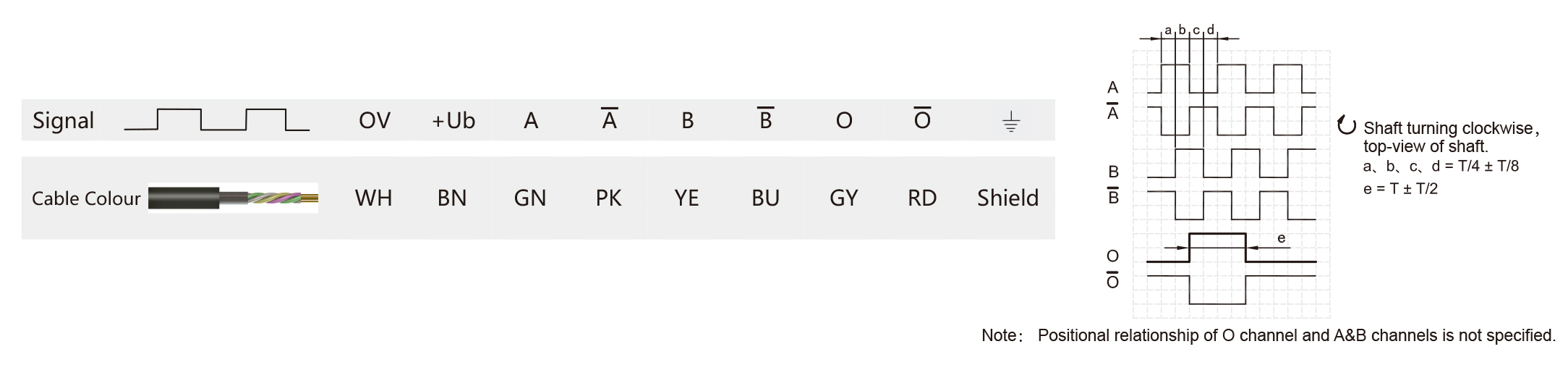

Output circuit Push-Pull
Push-Pull Differential
Voltage
Open Collector
RS422（TTL Compatible）

Pulse rateMax.2500 P/R

Supply voltage 5-30V

Power consumption(no load)Max. 125 mA

Permissible load/channel Max.±80mA

Pulse frequency Max. 300KHz

Signal level high Min.Ub-1.5V
min.Ub-2.5V

Signal level low Max. 0.8V

Rise time Tr Max. 1μs

Fall time TfMax. 1μs

Short circuit proof outputs Yes
