Incremental Encoder

ECK38S

ECK38S Series
Sensing method Optical
Housing size Φ38mm
Shaft diameter Φ6mm
Max. resolution 600PPR
Supply voltage 9-26VDC
Protection IP54

Technical parameter

Technical – Machine characteristics

Shaft diameter Solid shaft Φ6mm

Sensing methodOptical

Max. resolution600PPR

Supply voltage 5VDC,5-30VDC,9-26VDC

ProtectionIP54

Speed6000RPM

Shaft loadingMax. 20N Axial;Max. 40N Radial

Shock resistance50g,6ms

Vibration resistance10g,10...2000HZ

Starting torque<0.005Nm

Solid shaft Stainless steel

FlangeAluminum alloy

HousingTensile iron shell +Black painted

Working temperature0~+60℃

Storage temperature-40~+70℃

Weight≈ 83g

Technical – Electrical characteristics

Output circuit

Pulse rate

Supply voltage

Power consumption(no load)

Permissible load/channel

Pulse frequency

Signal level high

Signal level low

Rise time Tr

Fall time Tf

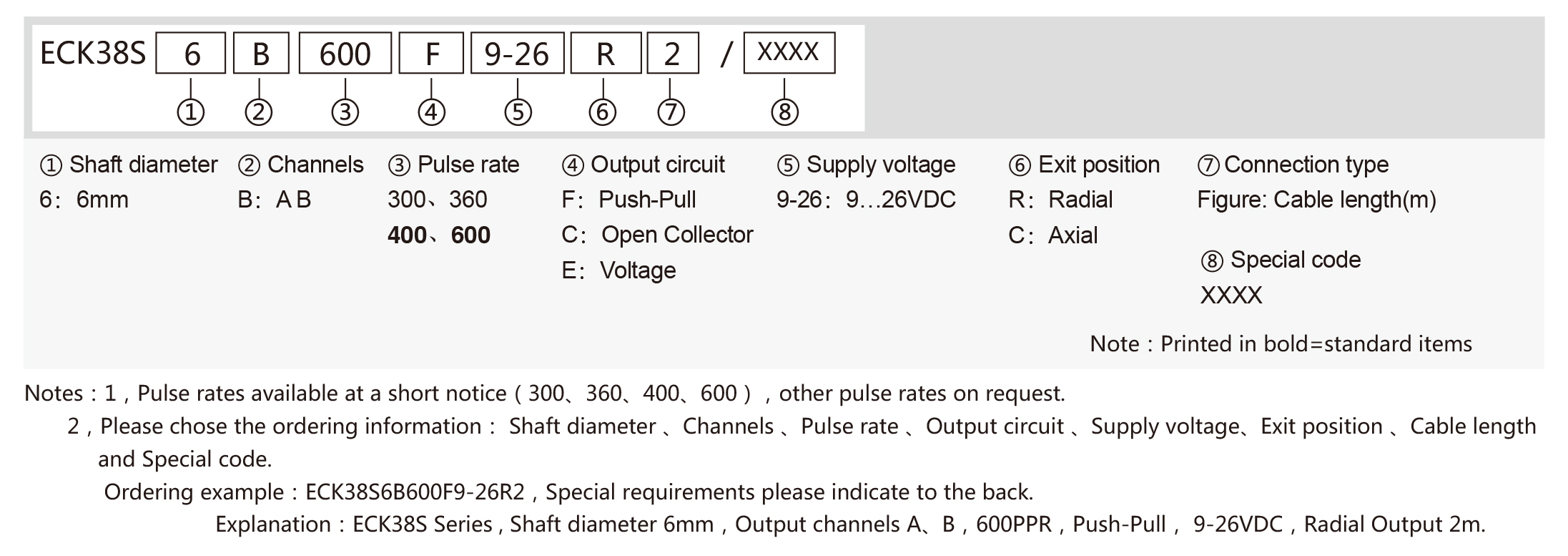

Ordering information

Ordering example:ECK38S6B600F9-26R2

Terminal assignment

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
ECK38S Series Incremental Encoder2.41 M

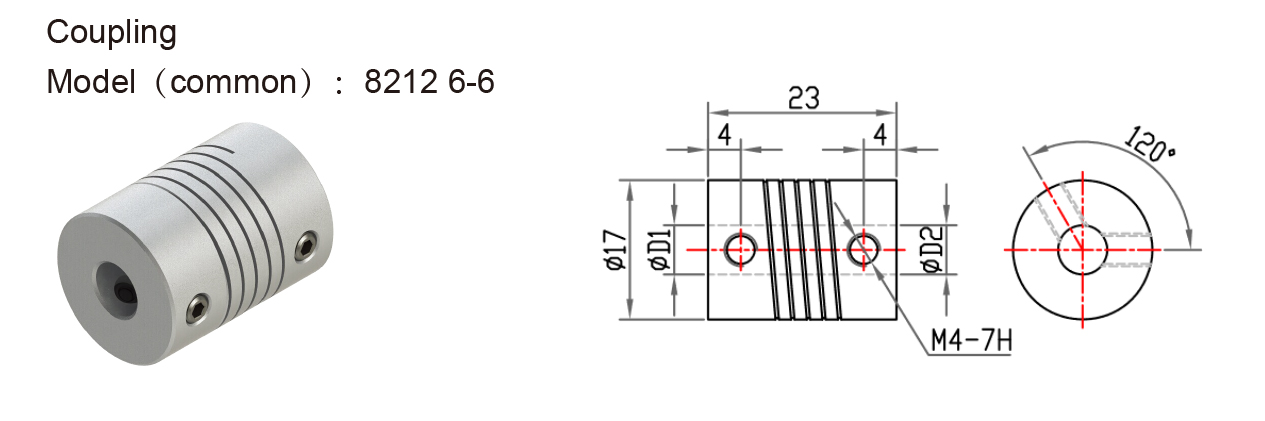

Accessories
