Explosion-proof Encoder

BDEEX68SB Series

  • BDEEX68SB Series
  • Sensing method Optical
  • Intrinsically safe+Dust composite explosion-proof encoder
  • Explosion proof mark Ex ib Ⅱ C T4 Gb Ex tD A21 IP66 T80℃
  • Housing size Φ68 mm
  • Shaft diameter Φ6、Φ8、Φ10mm
  • Max. resolution 600PPR
  • Supply voltage 10-28VDC
  • Protection IP66

Technical parameter

Technical – Machine characteristics

Shaft diameterSolid shaft Φ6、Φ8、Φ10mm

ProtectionIP66

Speed6000RPM

Shaft loadingMax. 70 N Axial;Max. 140 N Radial

Shock resistance100g,6ms

Vibration resistance10g,10...2000HZ

Starting torque<0.1Nm

MaterialsSolid shaft :Stainless steel
Flange :Aluminum alloy
Housing:Aluminum alloy

Working temperature-40℃…+80℃

Storage temperature-40℃…+80℃

Weight≈500g(Cable 2 m)

Technical – Electrical characteristics

Output circuitRS422/TTL
Push-Pull/HTL
NPN Open Collector

Pulse rateMax. 512P/R

Supply voltage10-28VDC

Power consumption(no load)Max. 80 mA

Permissible load/channelMax. ±30 mA

Pulse frequencyMax. 100 KHz

Signal level highMin. Ub-1.5V

Signal level lowMax. 0.8V

Rise time TrMax. 1 μs

Fall time TfMax. 1 μs

Short circuit proof outputsYes

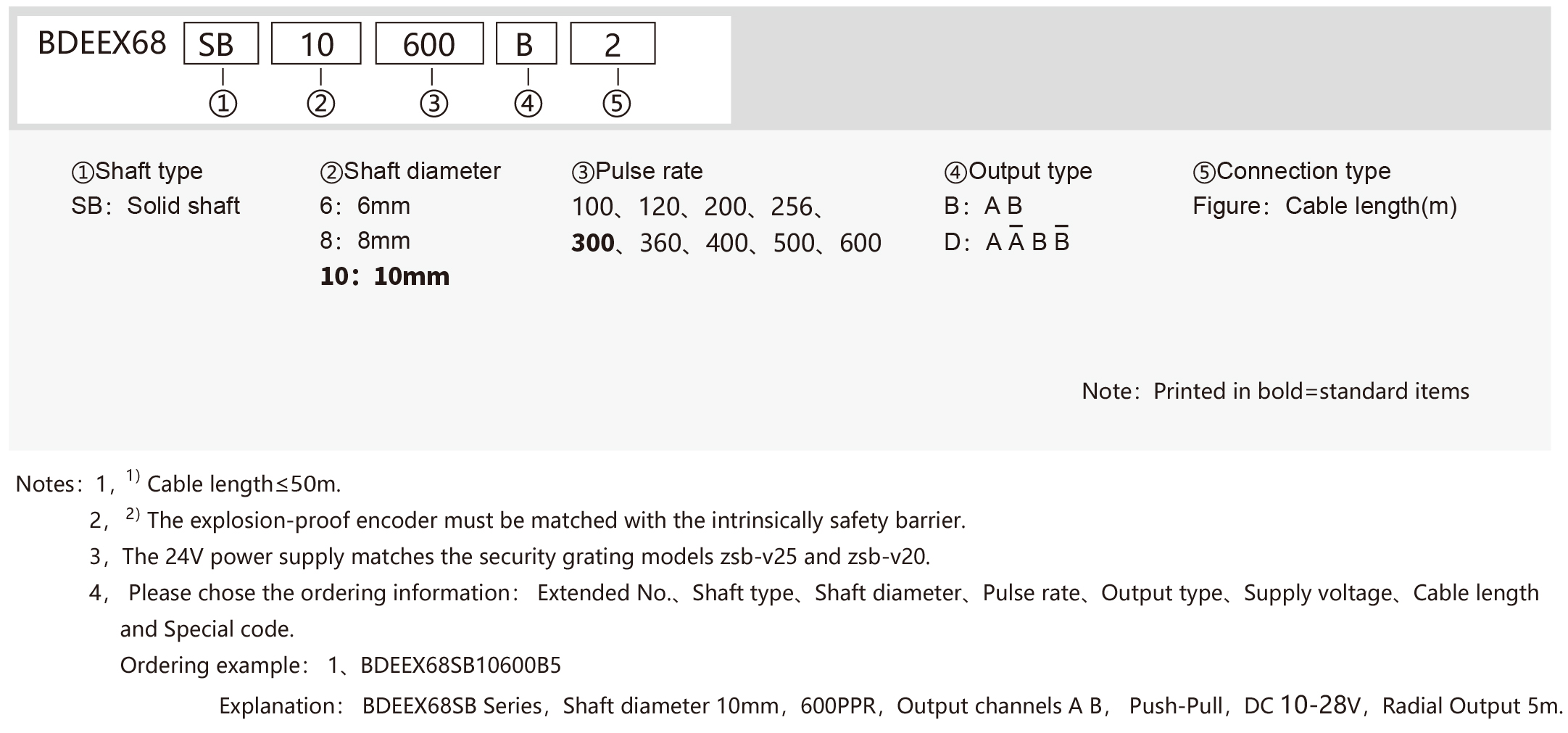

Ordering information

Ordering example:BDEEX68SB10600B5

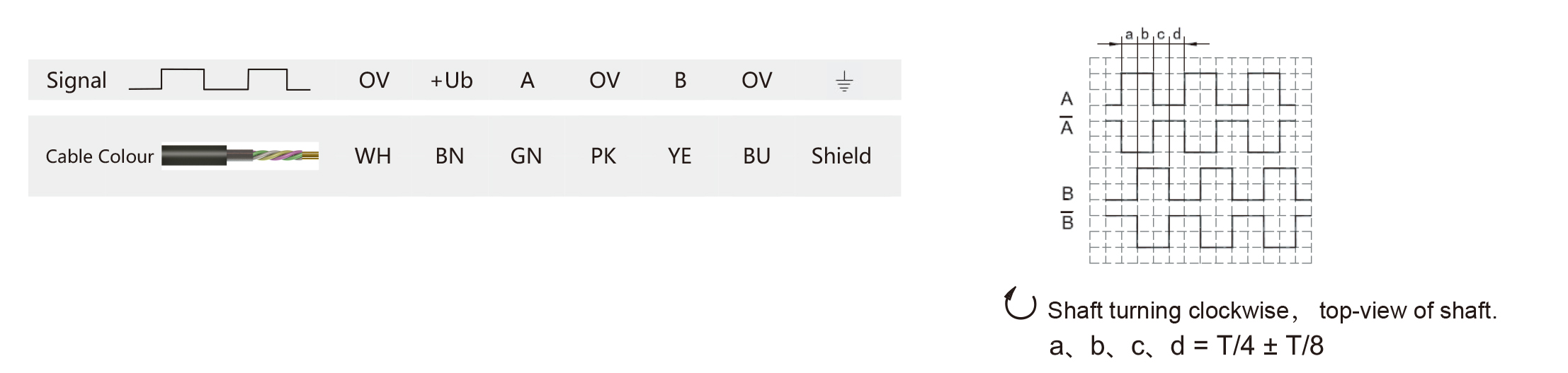

Terminal assignment

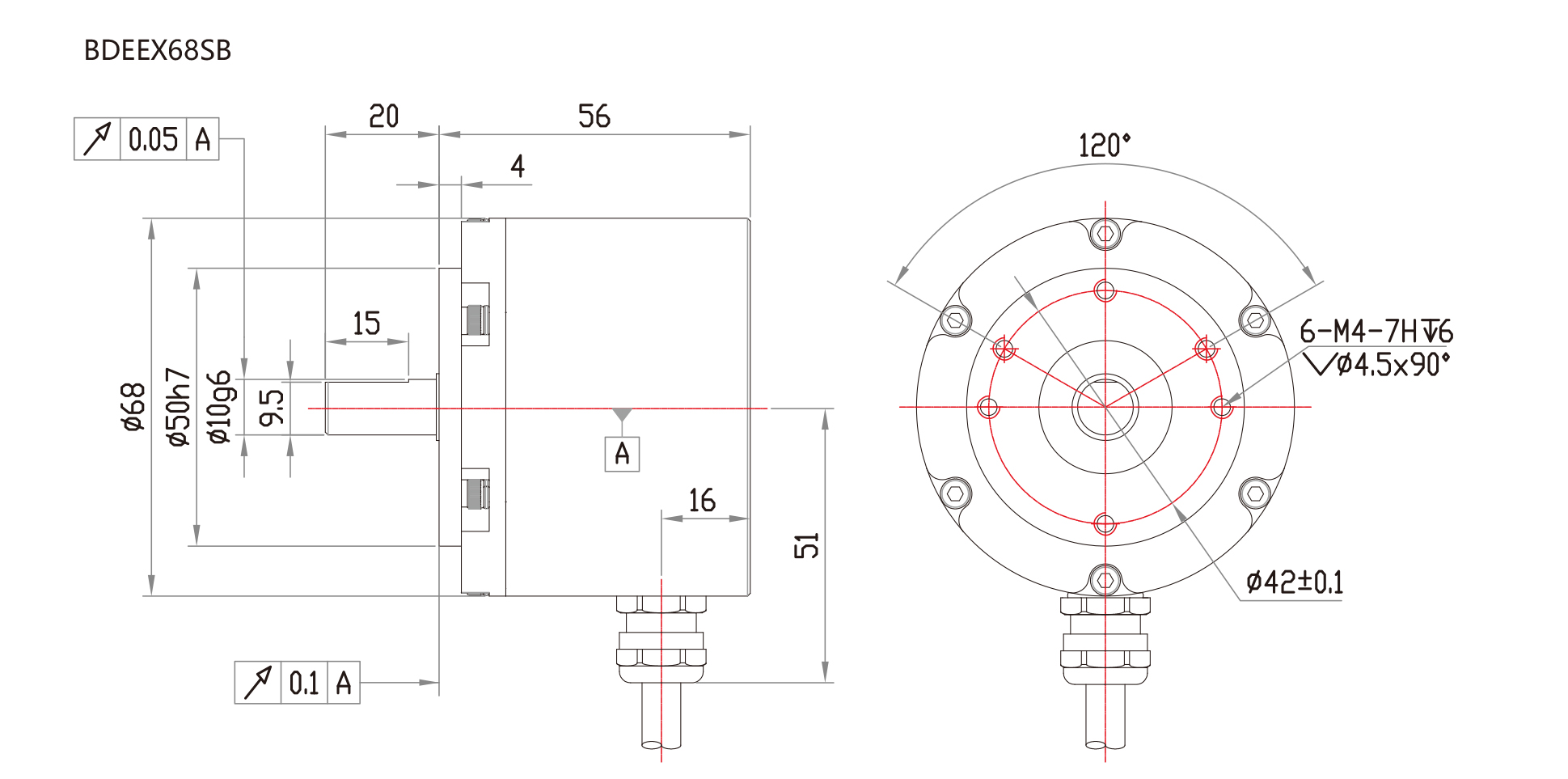

Dimensions

Download

File nameFile thumbnailFile sizeDownload link
BDEEX68SB Series Explosion-proof Encoder0.00 M

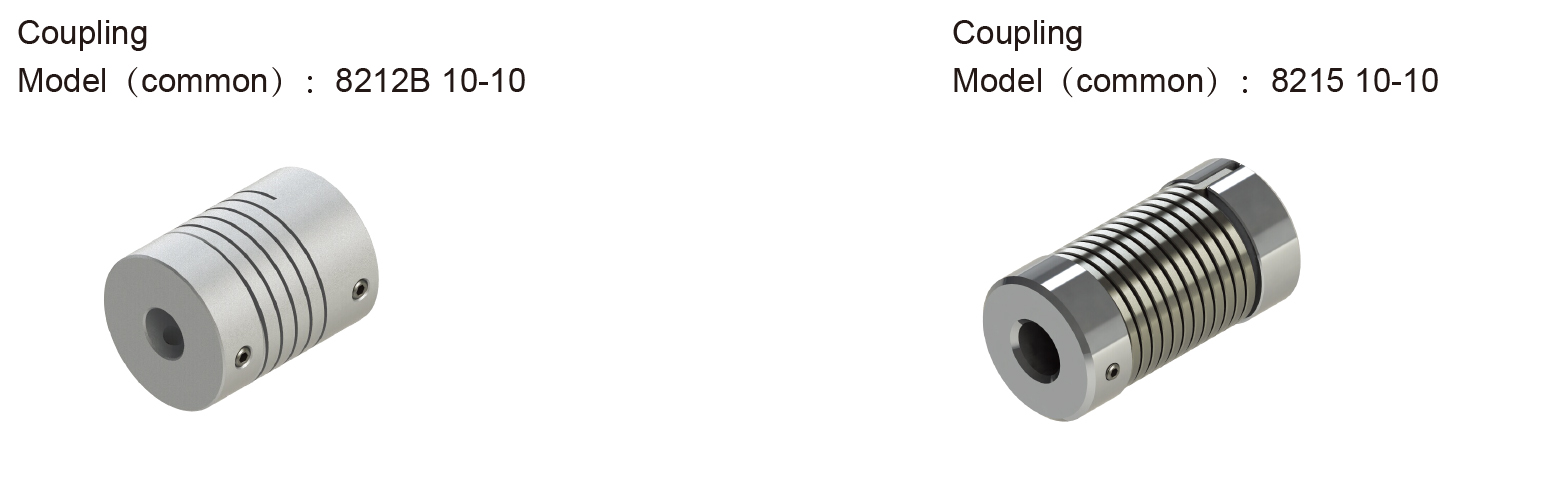

Accessories
