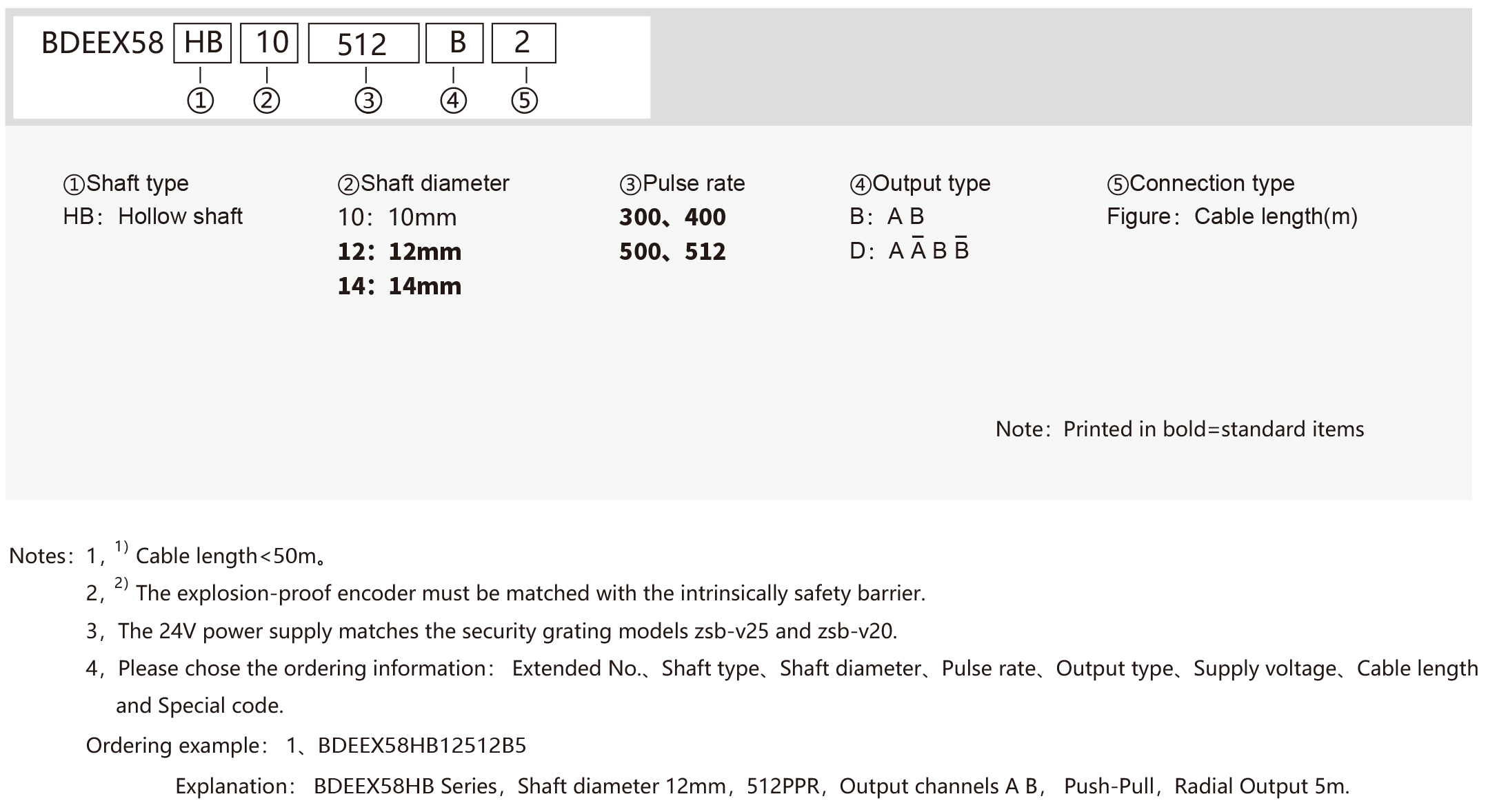

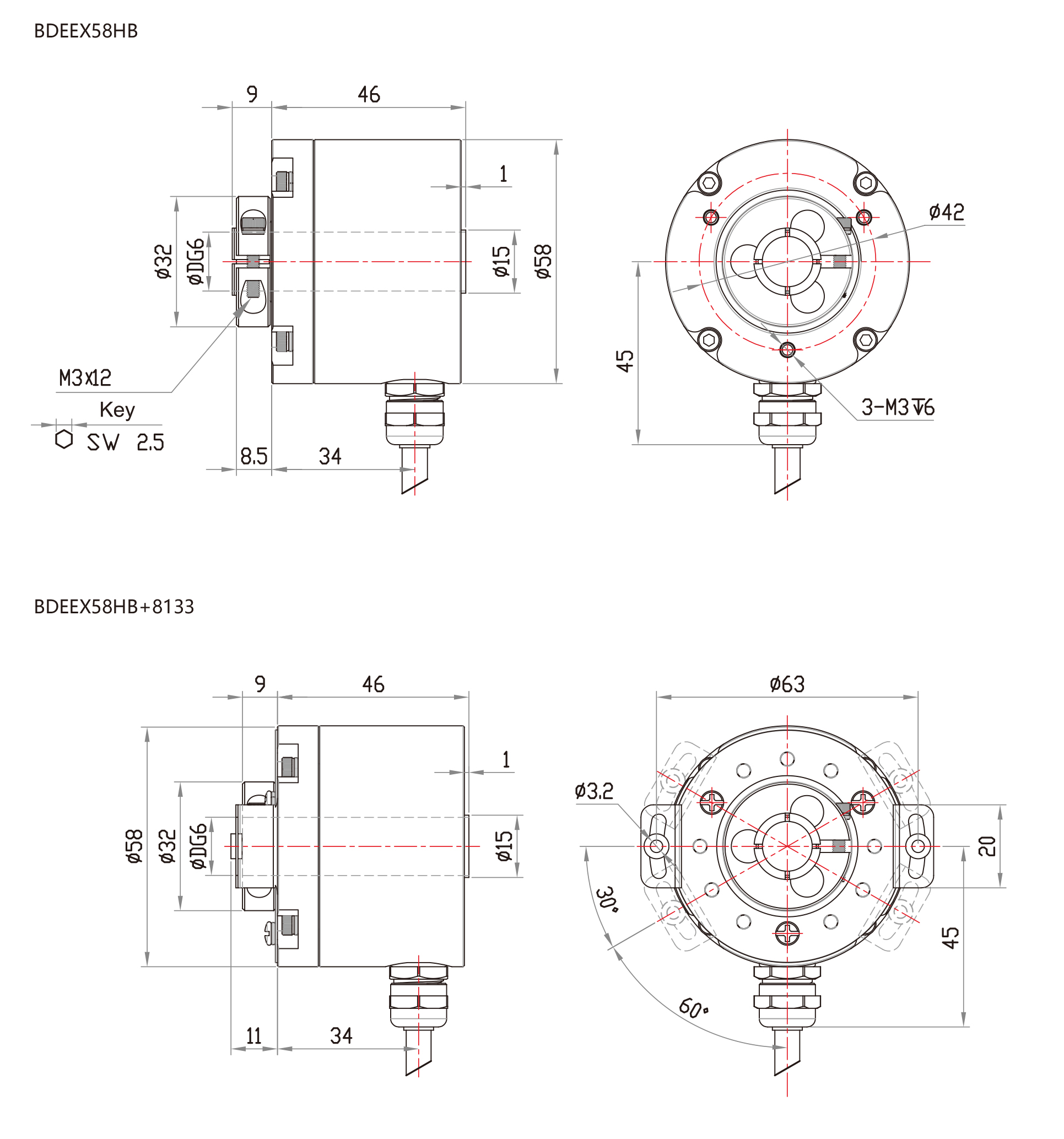

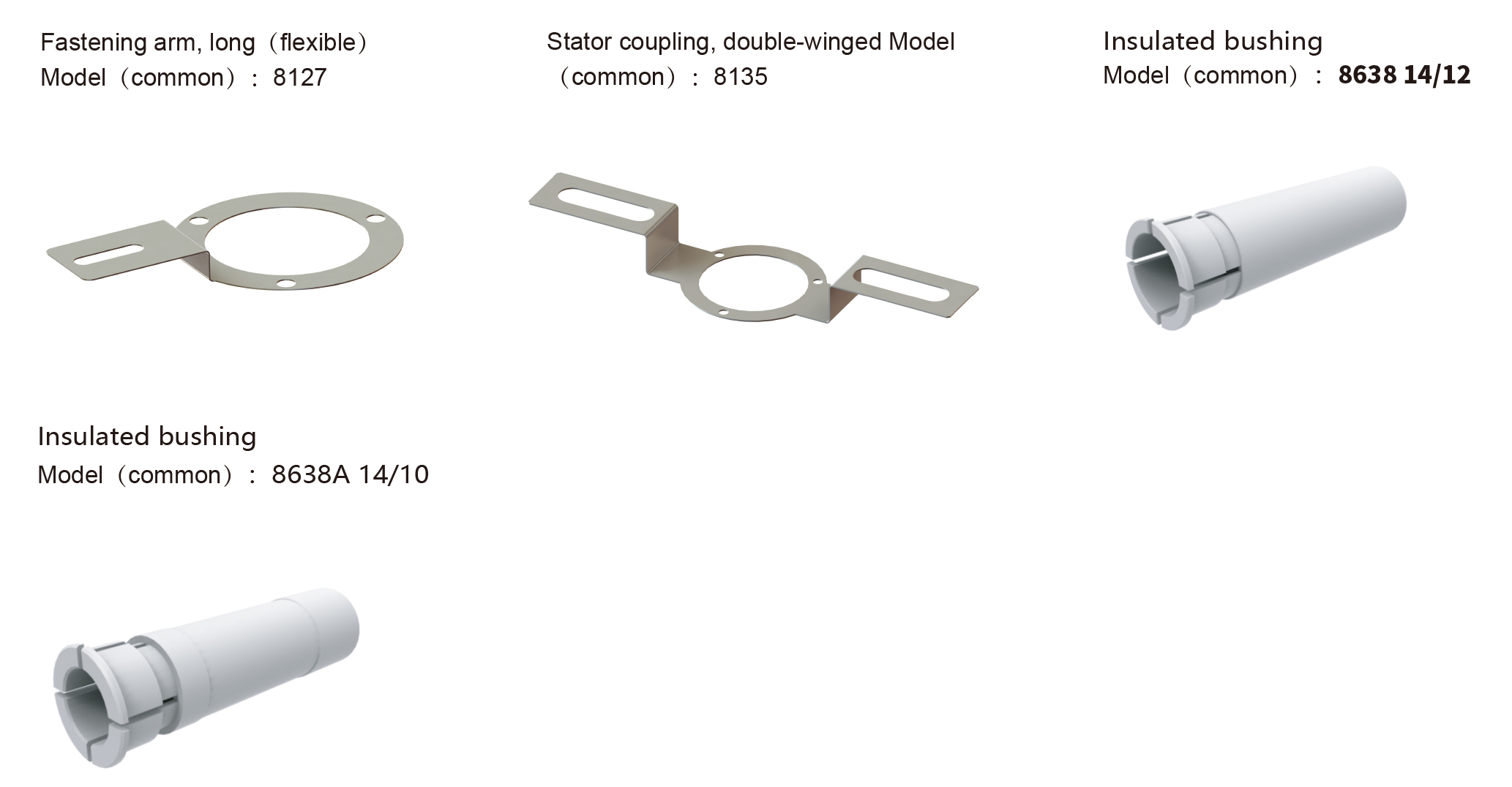

BDEEX58HB Series

Shaft diameterHollow shaft Φ10、Φ12、Φ14mm

ProtectionIP66

Speed3000RPM

Shaft loadingMax. 70 N Axial；Max. 140 N Radial

Shock resistance100g，6ms

Vibration resistance10g，10...2000HZ

Starting torque<0.1Nm

MaterialsHollow shaft ：Stainless steel
Flange ：Aluminum alloy
Housing：Aluminum alloy

Working temperature-40℃…+80℃

Storage temperature-40℃…+80℃

Weight≈300g（2m电缆）

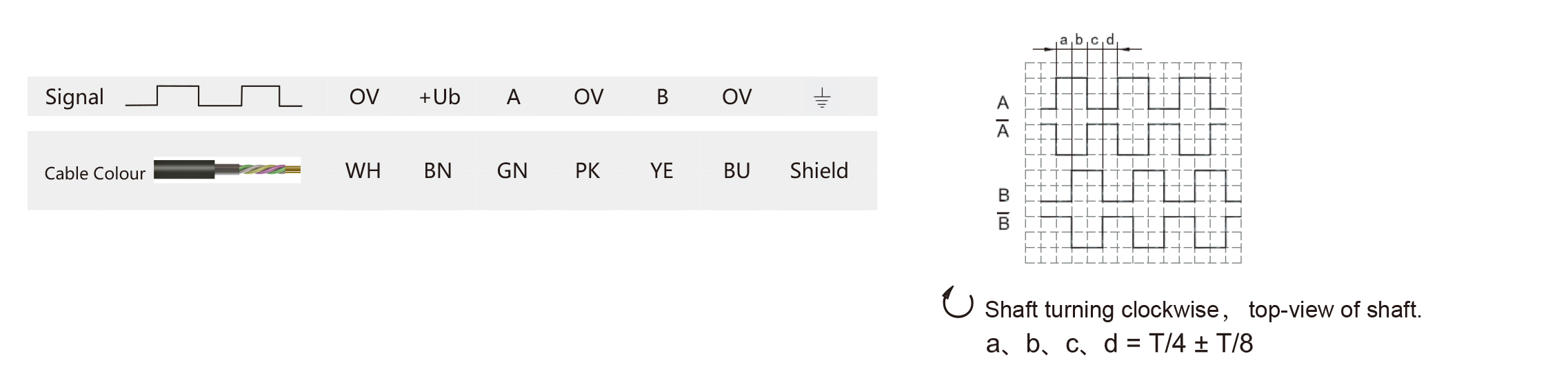

Output circuitRS422/TTL
Push-Pull/HTL
NPN Open Collector

Pulse rateMax. 512P/R

Supply voltage10-28VDC

Power consumption(no load)Max. 80 mA

Permissible load/channelMax. 40 mA

Pulse frequencyMax. 100 KHz

Signal level highMin. Ub-1.5V

Signal level lowMax. 0.8V

Rise time TrMax. 1 μs

Fall time TfMax. 1 μs

Short circuit proof outputsYes
