BDEEX115SA Series

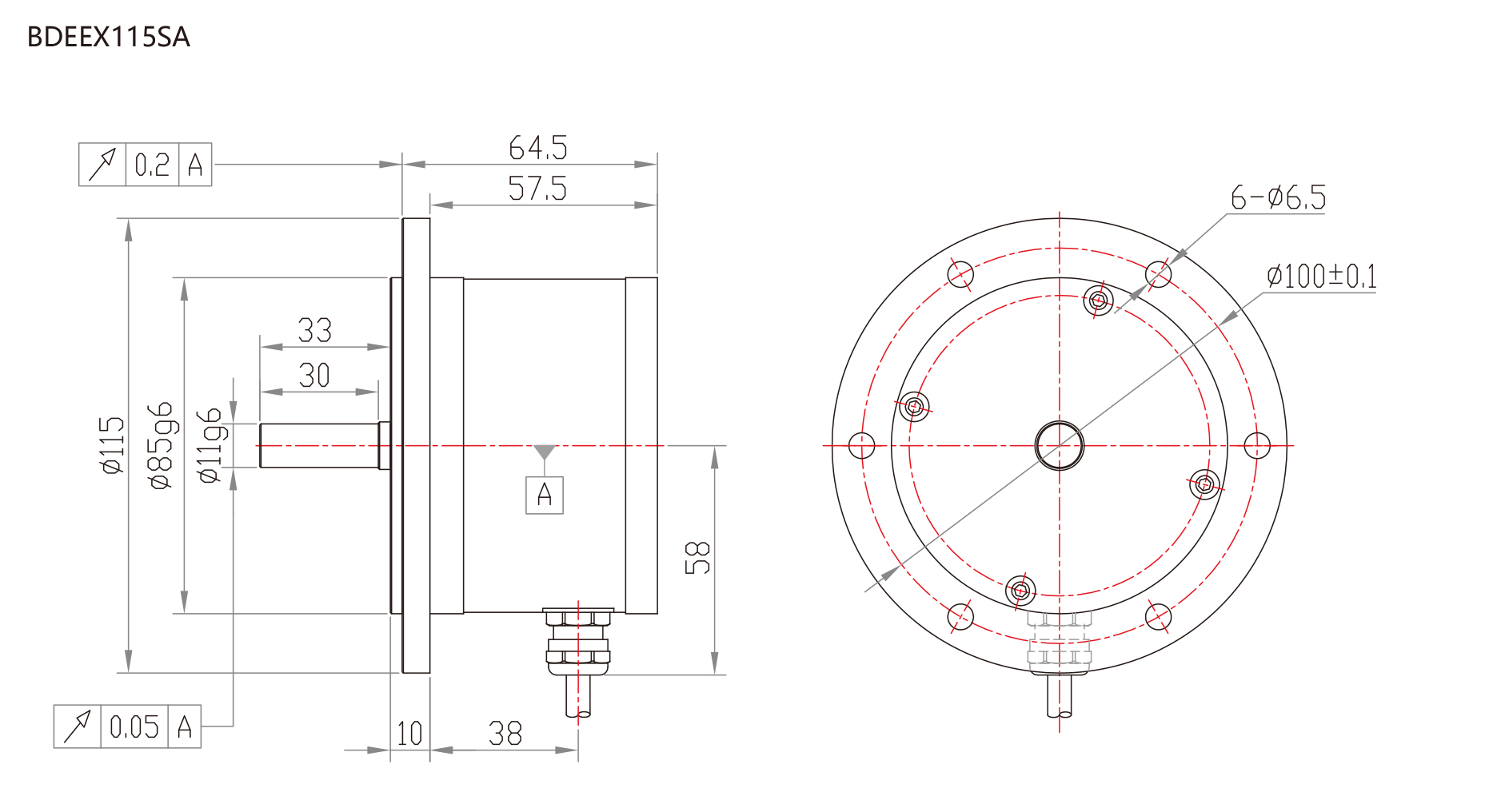

Shaft diameterSolid shaft Φ10、Φ11、Φ12mm

ProtectionIP66

Speed3000RPM

Shaft loadingMax. 70 N Axial；max. 140 N Radial

Shock resistance100g，6ms

Vibration resistance10g，10...2000HZ

Starting torque<0.1Nm

MaterialsSolid shaft ：Stainless steel
Flange ：Aluminum alloy
Housing：Aluminum alloy

Working temperature-40℃…+80℃

Storage temperature-40℃…+80℃

WeightApprox. 1.2kg ( Cable 2m)

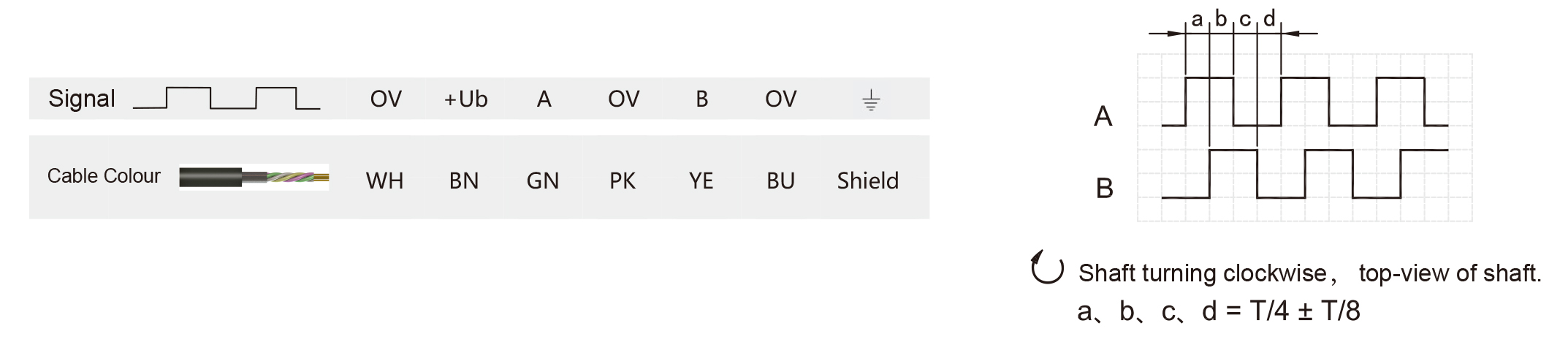

Output circuitRS422/TTL
Push-Pull/HTL
NPN Open Collector

Pulse rateMax. 2048 P/R

Supply voltage10-28V

Power consumption(no load)Max. 80 mA

Permissible load/channelMax. ±30 mA

Pulse frequencyMax. 100 KHz

Signal level highMin. Ub-1.5V

Signal level lowMax. 0.8V

Rise time TrMax. 1μs

Fall time TfMax. 1μs

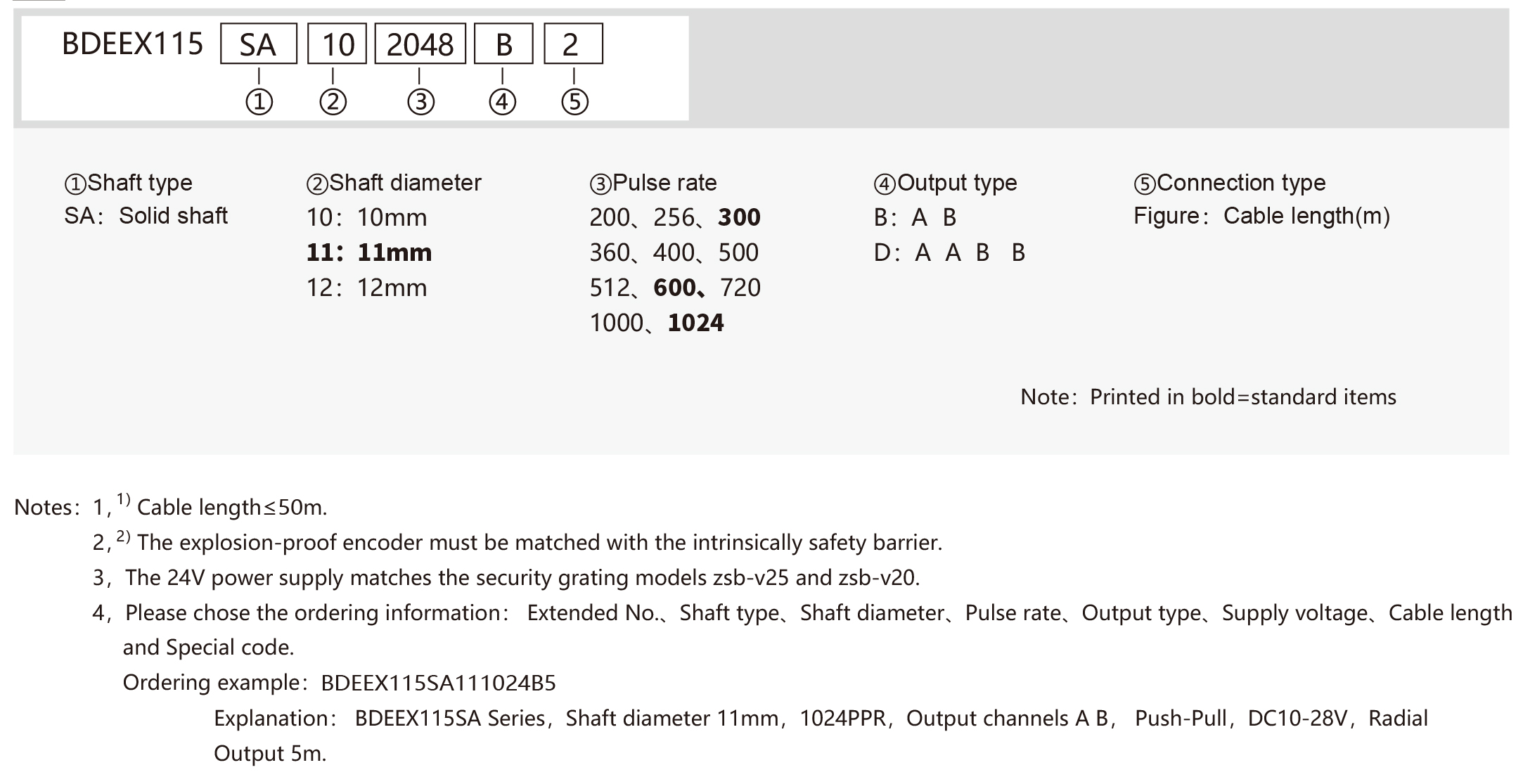

Short circuit proof outputsYes
